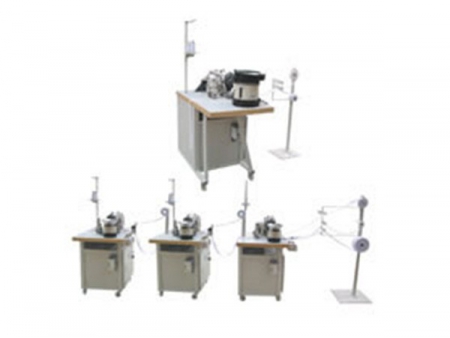

Hook and Eye Machine

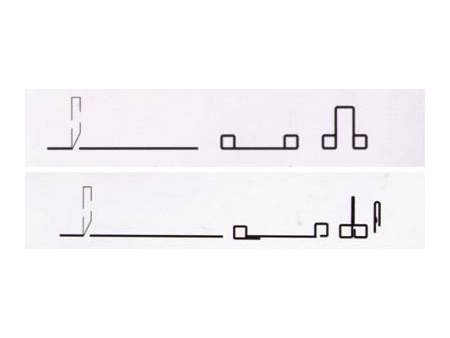

HE-100 hook and eye making machine is specially manufactured for producing hooks or eyes used on hook and eye tapes. One machine for hook and one machine for eye.

• Our hook and eye machine is produced using advanced technology from Japan, with high speed and good working efficiency.
• It is equipped with auto feeding and straightening device, and can automatically stop when there is fault.
• Linear rail is THK brand, original from Japan, very precise and stable
• Main bearings are imported from Japan
• Synchronous belt is imported from Japan
• Gears are made by 40Cr, adjusted and quenched, HRC 52-55, shafts are made by 45# steel, adjusted
• Feeding and straightening rollers are made by good steel alloy, heat treated HRC 58-62
• Polished active components surface, no damages to the coating layer of wire.

ZH-457 series hook and eye sewing machine is specially designed for sewing hook and eyes with adjustable stitch pitches controlled by micro-computer. For one line, there need three eyes sewing machines and one hook sewing machine.

• Stitching pitches is adjustable controlled by micro-computer, easy and convenient operation
• Discretional sizes and stitches. Once set, the program can be called out repeatedly
• Total 20 programs can be saved
• LCD displays present sewing specification and finished quantity of hooks or eyes
• Optional alarming function. When for trail test, the alarms for thread break and short of hook or eye can be shut off.
• Automatic alarm and stop when there is no tape or no hook, eye. After being provide with enough material, the system will start automatically.
