Vibratory Sieve
Fertilizer vibrating sifter for classification and separation of fine particles

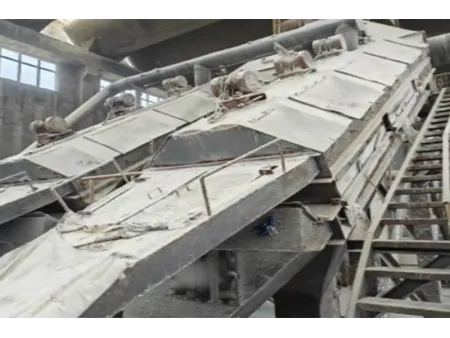

Vibratory sieves ensure accurate classification and separation of fine particles through a high-frequency vibrating mechanism that efficiently moves material across the screen surface. As materials pass over the mesh, they are sorted by particle size, thanks to the sieve's consistent and rapid motion. Available in single or double-layer configurations, this equipment is well-suited for industries that demand high capacity and precision, with minimal dust release due to its enclosed design. The vibratory sieve uses a vibrating motor to directly drive the screen via a linkage system, resulting in low power consumption, high production capacity, and effective screening performance. This direct connection ensures consistent vibratory motion, leading to efficient material classification and large-scale production.
| Model | Installation angle (°) | Sieve screen | Feeding size (mm) | Production capacity (t/h) | Vibration frequency (r/min) | Double amplitude (mm) | Motor | Installation | Weight (kg) | ||||
| Layer | Area (m²) | Mesh size (mm) | Structure | Model | Power (kW) | ||||||||
| 37 | 2 | 3.6 | Upper mesh 4.5×50 Lower mesh 1.4×50 | Welded or woven (stainless steel wire) | ≤60 | 30-35 | 1450 | 3-5 | ZDS-4 | 0.85*2 | Base | 1623 | |
| 30 | 2 | 5.4 | Upper mesh 4.75×50 Lower mesh 2.4×50 | Woven (stainless steel wire) | ≤60 | 30-35 | 1450 | 3-5 | ZDS-4 | 0.85*3 | Base | 2300 | |
| 37 | 2 | 3.6 | Upper mesh 4.75×50 Lower mesh 1.4×50 | Welded or woven (stainless steel wire) | ≤60 | 55-60 | 1450 | 3-5 | ZDS-4 | 0.75*3 | Base | 2631 | |
| 37 | 2 | 7.4 | Upper mesh 4.75×50 Lower mesh 1.4×50 | Woven (stainless steel wire) | ≤60 | 55-60 | 1450 | 3-5 | ZDS-4 | 0.75*4 | Base | 3290 | |
| 37 | 1 | 7.2 | 4×25 | Welded or woven (stainless steel wire) | ≤60 | 80-90 | 1450 | 3-5 | YZO-17-4 | 0.85*4 | Base | 3290 | |
| 37 | 2 | 7.2 | Upper mesh 4×50 Lower mesh 1.4-4 | Woven (stainless steel wire) | ≤60 | 80-90 | 1450 | 3-5 | YZO-17-4 | 0.85*4 | Base | 4532 | |
| 30 | 1 | 9.6 | 3.2×3.2 | Welded or woven (stainless steel wire) | ≤60 | 110-120 | 1450 | 3-5 | ZD414 | 0.75*4 | Base | 3712 | |
| 37 | 2 | 9.6 | Upper mesh 4×50 Lower mesh 2×50 | Woven (stainless steel wire) | ≤60 | 110-120 | 1450 | 3-5 | YZO-17-4 | 0.85*4 | Base | 4888 | |
| 37 | 1 | 12.5 | 4×25 | Welded or woven (stainless steel wire) | ≤60 | 160-180 | 1450 | 3-5 | YZO-17-4 | 0.85*4 | Base | 5813 | |
| 37 | 1 | 12.5 | 2-4×5.2 | Woven (stainless steel wire) | ≤60 | 160-180 | 1450 | 3-5 | YZO-17-4 | 0.85*8 | Base | 8200 | |
- Direct screen vibration ensures low power use and large production capacity
- High-frequency vibrations with small amplitude for efficient screening
- Designed to handle a variety of materials with increased throughput
- Sturdy, thick-wired screens offer durability and longevity
- Enclosed design that minimizes dust and noise, providing a cleaner operation environment
