H-beam Production Line
Request a Quote
This line consists of CNC controlled straight/profile flame cutting machine, H-beam auto assembling machine, gantry type H-beam welding machine, H-beam steel rectifying machine and shot-blasting machine.
- GS-4000 CNC Controlled Straight/Profile Flame Cutting Machine
- HG-1500ⅠH-beam Auto-assembling Machine
- MZG1000×2 Gantry Auto-welding Machine
- HYJ-40H Flange Rectifying Machine
- HP 8016-8 H-beam Auto Shot-blasting and Cleaning Machine
GS-4000 CNC Controlled Straight/Profile Flame Cutting Machine
- Length of rails 15000mm (or as required)
- Max. returning speed 3000mm/min
- Flame cutting thickness 6-100mm
- Total motor power 2kW
Technical Data
- Space between rails4000mm (or as required)
- Length of rails15000mm (or as required)
- Cutting width80-3200mm (straight strips);
≤2800 (CNC cutting); - Effective cutting length (whole sheet length)12000mm
- Cutting speed50-1000mm/min, adjustable
- Max. returning speed3000mm/min
- Flame cutting thickness6-100mm
- Plasma cutting thicknessBased on requirement
- Straight cutting torch9pcs (or as required)
- CNC cutting torch2pcs (electric raising/dropping, auto igniting)
- Applicable gasOxygen, ethyne or propane
- Total motor power2kW

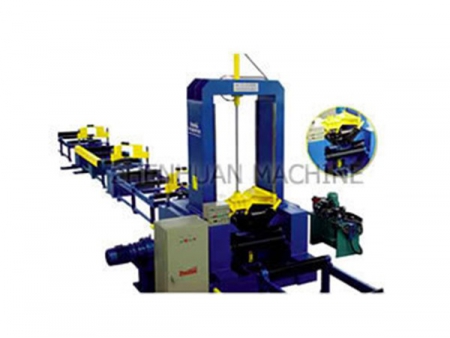

HG-1500ⅠH-beam Auto-assembling Machine
Technical Data
- Machine function: Auto clamping & spot welding, manual overturning
- Applicable H-beam web plate width: 200-1500mm
- Applicable H-beam web plate thickness: 6-32mm
- Applicable H-beam flange plate width: 150-600mm
- Applicable H-beam flange plate thickness: 6-40mm
- Applicable H-beam length: 2000-15000mm
- Production speed: 500-1200mm/min
- Length of supporting roller rack: Total 28000mm
- Driving motor: 7kW, inverter control (excluding two welders)

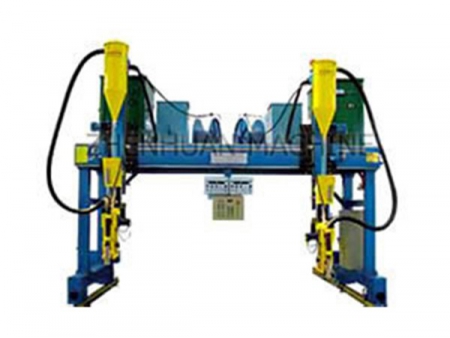

MZG1000×2 Gantry Auto-welding Machine
Technical Data
- Welding method: Submerged arc welding
- Welding power: 63kVA×2
- Suitable H-beam width: 200-800mm
- Suitable H-beam height: 200-1500mm
- Suitable H-beam length: Max. 15000mm
- Space between two rails: 4000mm
- Suitable diameter of welding wire: 3.2-5mm
- Welding agent recycling machine: 50kg×2
- Driving method: Double side driving
- Total power: 8.2kW
HYJ-40H Flange Rectifying Machine
Technical Data
- Suitable H-beam flange plate width: 200-800mm
- Suitable H-beam flange plate thickness: 6-40mm
- Min. height of web plate: 200mm**
- Rectifying speed: About 16000mm/min
- Total motor power: 24.2kW
Note: For the web plate with the height of 200-350mm and flange plate with thickness less than 16mm, subsidiary rectifying rollers should be used.
HP 8016-8 H-beam Auto Shot-blasting and Cleaning Machine
- Passing speed 0.4~2.5m/min
- Shot blaster (Power) 8×11kw
- Separator Capacity 120t/h
- Total power About 140kw
Technical Data
- Size of working piece (Section size) (width x height)800×1600mm
- Size of working piece (Length)16000mm
- Passing speed0.4~2.5m/min
- Shot blaster (Type)Q034
- Shot blaster (Quantity)8
- Shot blaster (Blasting quantity)8×230kg/min
- Shot blaster (Power)8×11kw
- Raising machine (Capacity)120t/h
- Raising machine (Power)7.5kw
- Longitudinal spiral conveyor (Capacity)120t/h
- Longitudinal spiral conveyor (Power)5kw
- Transverse spiral conveyor (Capacity)120t/h
- Transverse spiral conveyor (Power)4kw
- Separator Capacity120t/h
- Pill clean-away system (Power)11kw
- Pill clean-away system (Wind blow)4237M3/h
- In-out roller table (Loading capacity)1000kg/m
- In-out roller table (Motor power)2×2.2kw
- In-out roller table (Conveying speed)0.4~4m/min
- In-out roller table (Length)13000mm
- First loading quantity of pills5000kg
- Dust-cleaning system (Wind blow)16000m3/h
- Dust-cleaning system (Power)15kw
- Total powerAbout 140kw
