TIG/Stick Welder (IGBT Inverter), WS Series
Request a Quote
Features
- Advanced IGBT inverter technology;
- Designed with self-locking and non-self-locking functions for argon arc welding;
- Manual arc welding supports vertical-down welding with cellulose electrodes;
- Automatic protection functions for overcurrent, overvoltage, undervoltage and overload;
- High efficiency and low no-load loss, can save more than 1/3 power comparing to conventional welders;
- Automatic compensation for mains voltage fluctuations, strong resistance to voltage fluctuation (V±15%);
- Easy arc starting, low noise level, stable and reliable arc, good weld formation;
- For welders of over 550A, can implement carbon arc gouging, suitable for welding of stainless steel, alloy steel, titanium, etc.;
- Two welding processes can be accomplished in one machine, i.e. argon arc welding and manual arc welding;
Standard Configurations
- Earth clamp 1pc
- Quick connector 2pcs
- Earth cable 2m
- Water-cooled welding torch 1pc
- Hex key 1pc
Technical Parameters
| Base metal | Thickness (mm) | Welding rod dia. (mm) | Welder model | Current adjustment(A) |
| Carbon steel, stainless steel, low-alloy steel | 0.3-6 | 1.6-2.4 | WS-200G | TIG:20-175 MMA:20-155 |
| 0.3-10 | 1.6-3.2 | WS-250G | TIG:20-190 MMA:20-170 | |
| 0.3-12 | 1.6-3.2 | WS-315G | TIG:20-220 MMA:20-220 | |
| 1.0-16.0 | 4.0/5.0 | WS-400 | 20~400 | |
| 1.0-20.0 | 5.0/6.0 | WS-500 | 20~500 | |
| ≥ 15 | 8.0/10.0 | WS-630 | 20~630 |

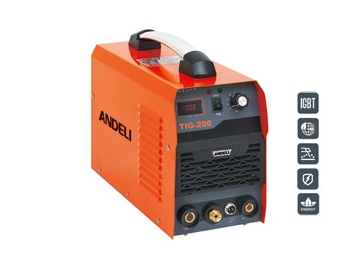

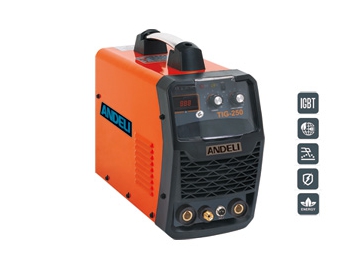

| Model | WS-200G (TIG-200) | WS-250G* (TIG-200) | WS-315G* (TIG-315) | WS-400* (TIG-400) | WS-500* (TIG-500) | WS-630 (TIG-630) |
| Rated input voltage (V) | Single phase 220V ±15% | 3 phase 380V ±15% | 3 phase 380V ±15% | |||
| Rated frequency (Hz) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Rated input current (A) | 23 | 26 | 12 | 27 | 38 | 52 |
| Rated input capacity (KVA) | 5 | 5.7 | 8 | 18 | 25 | 35 |
| Open circuit voltage (V) | 56±5 | 62±5 | 62±5 | 79 | 79 | 79 |
| Output current adjustment (A) | TIG:20-175 MMA:20-155 | TIG:20-190 MMA:20-170 | TIG:20-220 MMA:20-220 | 20~400 | 20~500 | 20~630 |
| Rated operational voltage (V) | TIG:17 MMA:26.2 | TIG:17.6 MMA:26.8 | TIG:18.8 MMA:28.8 | 36 | 40 | 40 |
| Arc force range (A) | - | - | 0-100 | 0~100 | 0~100 | 0~100 |
| Duty cycle (%) | 60 | 60 | 60 | 60 | 60 | 60 |
| Efficiency (%) | 80 | 80 | 80 | 85 | 85 | 85 |
| Power factor | 0.7 | 0.7 | 0.7 | 0.93 | 0.93 | 0.93 |
| Net weight (kg) | 5.5 | 6 | 20 | 41.4 | 47.6 | 51 |
| Dimension (mm) | 335×120×200 | 335×120×200 | 480×200×375 | 642×323×573 | 642×323×573 | 697×350×635 |
| Tungsten needle dia. | - | - | - | 1.6~4.0 | 1.6~4.0 | 1.6~4.0 |
