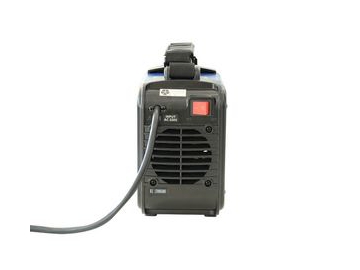

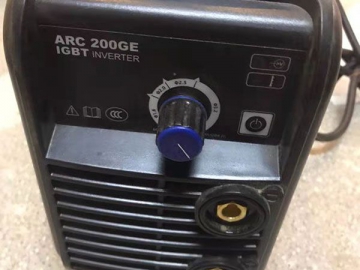

ARC 200GE

Features
  • Newly developed ARC welding machine, adopting high-performance single-tube IGBT inverter technology;
  • Digital chip control, high welding stability;
  • Exceptional performance, able to achieve continuous welding with stick electrodes of Ø2.5/3.2mm without having to be stopped for cooling;
  • Welder extension cable of up to 5m;
  • Compact size and lightweight, easy to carry;

Specifications
Model ARC 200GE
Input voltage 1PH 220V (±15%)
Frequency (Hz) 50/60Hz
Rated input current (A) 25.5
No-load voltage (V) 58
Duty cycle (40℃) 20%
Current adjusting range (A) 40-140A
Output voltage (V) 21.6-25.6
Efficiency ≥86%
Power factor ≥0.65
Protection grade IP21
Insulation class Class F
Cooling method Forced air cooling
Net weight (kg) 3
Dimensions (L×W×H) (mm) 292×136×235

Package Included

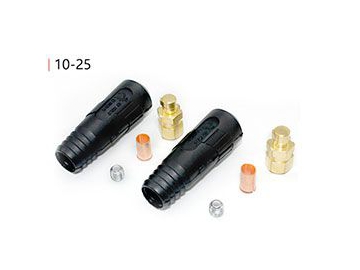

  • Welding cable quick connector, 2pcs

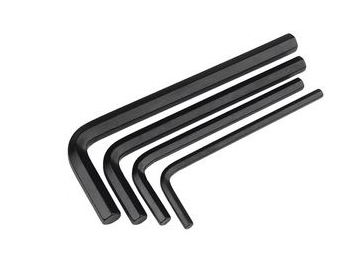

  • Allen key, 1pc

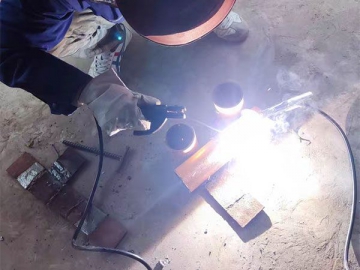

Applications

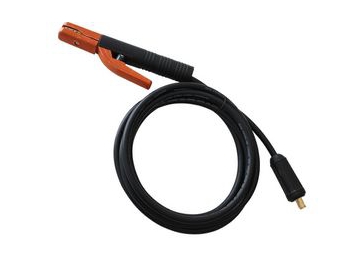

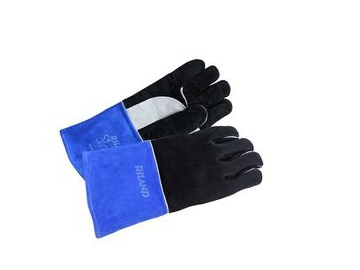

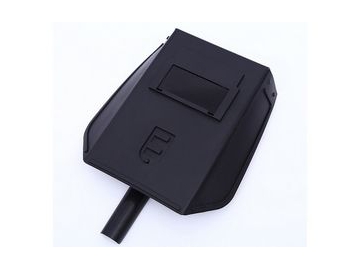

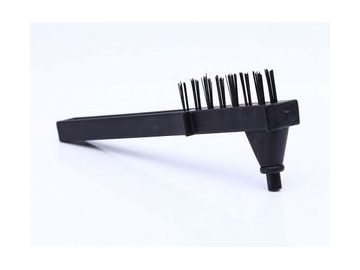

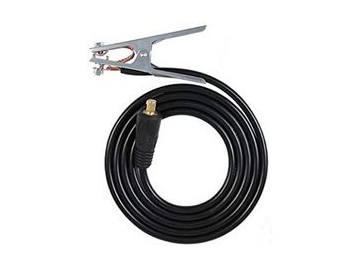

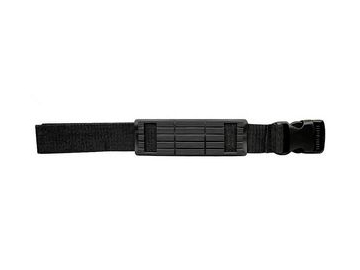

Optional Welding Accessories
