Servo Terminal Crimping Machine (without Changing Dies)
Request a Quote
- The optical encoder provides precision control with 1µm accuracy, ensuring that each crimping operation delivers consistent and reliable results.
- External barcode scanner connectivity allows seamless integration with ERP management systems, enabling streamlined production workflows and improved traceability.
- Capable of storing past crimping data, which can be used for quality management and production tracking, ensuring high standards across all operations.
Technical Data
Model | ||||
Effective Stroke | 40mm | 50mm | 75mm | 75mm |

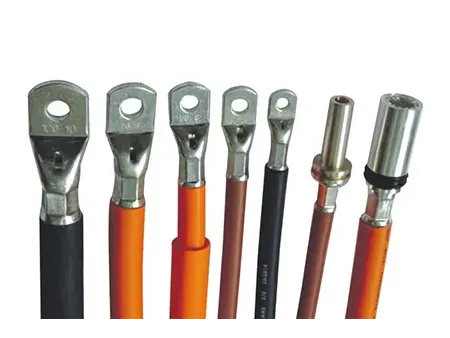

Crimping Range | 2.5-35mm² | 2.5-95mm² | 2.5-180mm² | 2.5-300mm² |
Crimping Accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm |
Dimensions (L×W×H) | 540×350×785mm | 560×400×985mm | 560×400×985mm | 700×480×1225mm |
Weight | 165kg | 180kg | 295kg | 320kg |
Power | 50W | 50W | 50W | 50W |
Crimping Capacity | 800-1500 crimps/hr | 800-1500 crimps/hr | 800-1500 crimps/hr | 800-1500 crimps/hr |
Startup | Touch screen, foot switch | |||
Operation Method | Touch control, automatic adjustment of crimping height | |||
Crimping Dies | Hexagonal die, square die, B-type die |
Features
-
The built-in recipe database simplifies production by allowing operators to save and quickly switch between product configurations, reducing setup time and improving efficiency.
-
The ability to quickly adjust terminal heights without changing dies enhances flexibility and adaptability for handling a variety of terminal assembly tasks.
-
Optional computer-based control (PC version) enables EMS system integration for centralized production management and monitoring, improving oversight in large-scale manufacturing environments.
