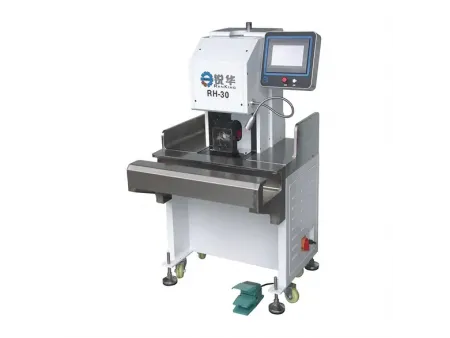

Servo Terminal Crimping Machine

Servo Terminal Crimping Machine
Request a Quote
  • The adjustable closed height, with a precision of up to 0.03mm, ensures consistent and reliable crimping results across various applications.
  • Quick mold changes allow for seamless adaptation to different production needs, minimizing downtime and improving efficiency.
  • The energy-efficient design activates only during the crimping process, reducing power consumption and operational costs.
Technical Data
Model
Power Supply 220V 50Hz/60Hz
Power 0.75kW 1.5kW 2kW 2.6kW
Crimping Force 20kN 30kN 40kN 60kN
Stroke 30mm (Euro stroke is customizable)
Weight 82kg 85kg 115kg 220kg
Dimensions (L×W×H) 350×350×650mm 350×350×700mm 360×360×840mm 450×420×1010mm
Features
  • A low-noise operation creates a comfortable working environment, making it suitable for small-scale or home-based setups.

  • Parameter adjustments for crimping height can be made directly through the control interface, eliminating the need for hardware modifications and streamlining setup.

  • The built-in recipe database allows operators to save and quickly switch between product configurations, improving workflow and reducing setup time.

  • Past crimping data can be stored for quality tracking and traceability, ensuring consistent production standards and simplifying audits.

  • Multiple operating modes, including single-cycle, precision, percentage, and multi-terminal modes, provide flexibility to accommodate a wide range of production requirements.

  • Specialized functions support crimping multi-core sheathed cables and cables with varying diameters, making it a versatile solution for complex cable assembly tasks.
