Crimping Dies

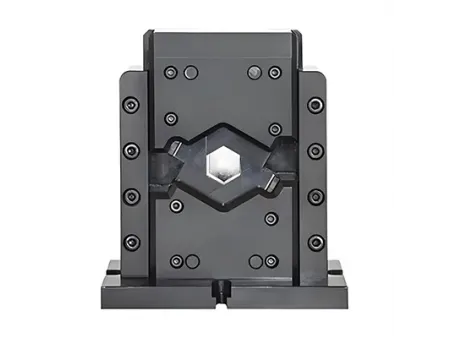

- RH-MM35 Hexagonal Crimping Die (Non-Changing)
- Crimping range: 0.5-35mm²
- Blade thickness: standard 9mm, optional 6mm/14mm/20mm
This hexagonal crimping die is designed for stable and precise crimping tasks across a range of machines. It is compatible with mute terminal crimping machines, 15T and 30T servo terminal crimping machines (with baseplate adjustments), and pneumatic hydraulic terminal crimping machines. By eliminating the need for frequent die changes, it simplifies operations and increases efficiency, making it an ideal choice for various terminal assembly tasks that demand reliability and consistency.

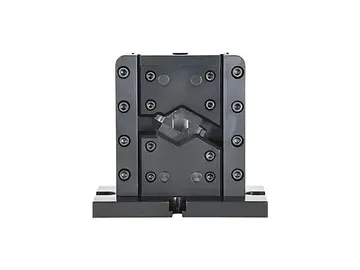

- RH-MM25 Hexagonal Crimping Die (Non-Changing)
- Crimping range: 0.5-35mm²

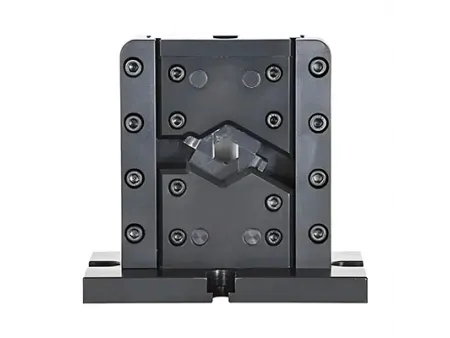

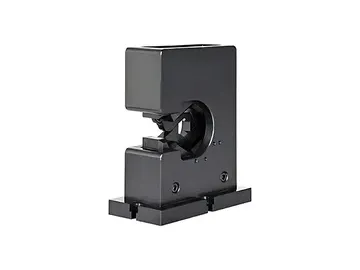

- RH-MMK120 Open Frame Hexagonal Crimping Die (Non-Changing)
- Crimping range: 10-120mm²
- Blade thickness: standard 15mm, optional 12mm/20mm/30mm
The open frame hexagonal crimping die is designed to provide precision and flexibility for terminal assembly tasks. Its compatibility with 15T and 30T servo terminal crimping machines, as well as pneumatic hydraulic models, makes it a versatile tool for diverse production requirements.

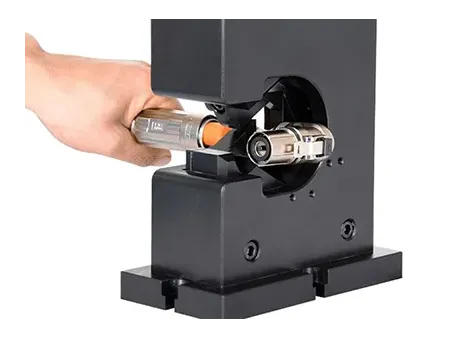

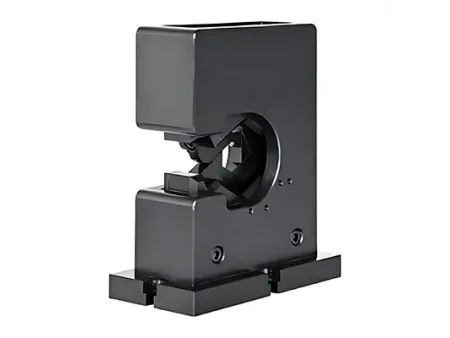

- RH-MM120 Hexagonal Crimping Die (Non-Changing)
- Crimping range: 10-120mm²
- Blade thickness: standard 15mm, optional 12mm/20mm/30mm
The hexagonal crimping die is compatible with 15T and 30T servo terminal crimping machines, pneumatic hydraulic and hydraulic terminal crimping machines, mute terminal crimping machines, and electric punching machines. It achieves a terminal compression ratio of up to 90%, ensuring consistent and reliable performance for a variety of applications.
- RH-MD4D Four Point Indent Crimping Die (for Large Diameter Cable)
- Crimping range: 10-120mm²
- Blade thickness: standard 10mm, optional 15mm
Designed for large-diameter cable applications, the four-point indent crimping die ensures precise and reliable crimping results. It works with 15T and 30T servo terminal crimping machines, pneumatic hydraulic crimping machines, mute terminal crimping machines, and electric punching machines, offering versatility for heavy-duty production needs.

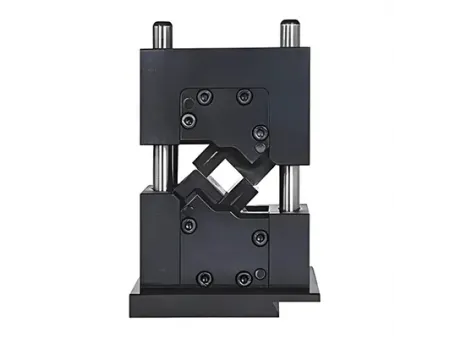

- RH-MX4B Square Crimping Die (Non-Changing)
- Crimping range: 0-50mm
- Blade thickness: standard below 20mm, optional30mm/40mm
Our square crimping die offers a reliable and efficient solution for terminal crimping without requiring frequent die changes. It is compatible with mute terminal crimping machines, pneumatic hydraulic crimping machines, electric punching machines, and servo terminal crimping machines, ensuring versatility across various wire processing setups.

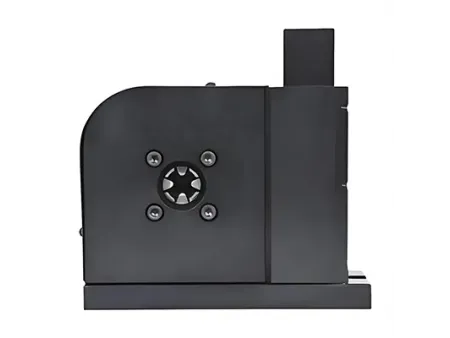

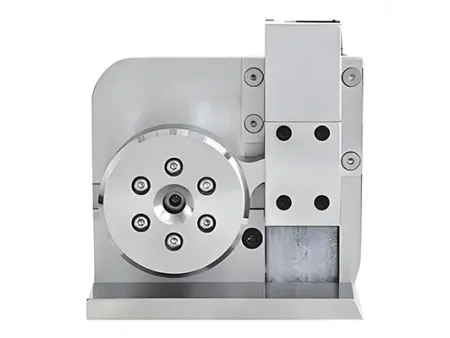

- RH-MM20-6D-Z Six Point Crimping Die
- Crimping range: diameter 0-6mm
- Blade thickness: 6mm
Six-point crimping dies ensure precise and adjustable positioning, allowing compatibility with various terminal sizes. Compatible with mute terminal crimping machines, pneumatic hydraulic systems, pneumatic crimping tools, and electric punching machines, the six-point crimping die offers flexibility and reliable performance for various terminal sizes and applications.

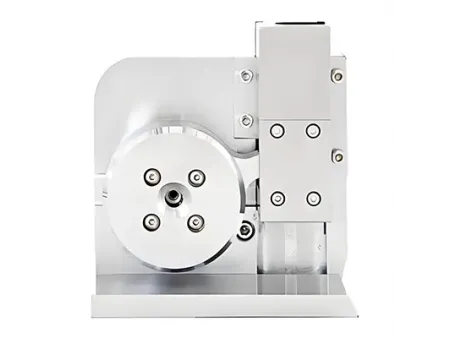

- RH-M4D Four Point Crimping Die
- Crimping range: diameter 0-6mm
- Blade thickness: 6mm
The four-point crimping die delivers precise and reliable performance, with adjustable positioning to accommodate different terminal sizes. It is compatible with mute terminal crimping machines, pneumatic hydraulic systems, pneumatic crimping tools, and electric punching machines, ensuring versatility for various crimping applications.
