Orbital Automatic Pipeline Welding Machine (FCAW/GMAW)
Orbital Automatic Pipeline WeldingMachine (FCAW/GMAW)
Model: PAAWM
Features
1. Automation level: Better (input all of the welding parametersbefore welding, and it can also control the machine real time when it isworking)
2.Beveling is required: After using STT semiautomatic welding to root welding,you can use this machine to weld.
3. The orbital automaticpipeline welding machine has a better welding production capacity of 250-350inch per day.
4. The operability is Excellent / Better.
5. The orbital automatic pipeline welding machine offers better surface shaping(welding gun always go along with the orbital track to welding of all position)
6.It has a welding qualification ratio of over 96%.
7. The orbital automatic pipeline welding machine’s driving reliability isexcellent. (Carriage forced going along with the orbital track.)
Applications

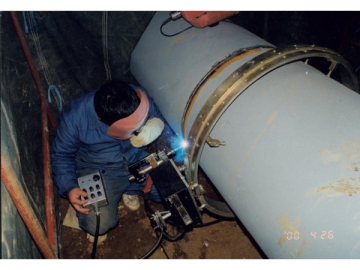

The orbital automatic pipeline welding machine is best used for welding big(middle) diameter and thick wall thickness fabricated welds which have longdistance pipeline diameter for hot welding, filling and cap welding of circularwelding.
Technical Parameters of theOrbital Automatic Pipeline Welding Machine
Applicable Pipe Diameter: DN300
Applicable Wall Thickness: 6
Applicable Materials: Carbon steel, alloy steel, stainless steel and lowtemperature steel (cryogenic steel), etc.
Applicable Welding Seams: Have abig space that makes it easy to install the orbital track of the pipewelding.
Power of Welding Head: 120W
Travel Speed: 0
Oscillation Range: 2.5
Oscillation Speed: 0
Maximum Offset:
Dwell Time: 0-2s
Welding Waveform: Triangular waveform, trapezoidal waveform, rectangularwaveform, and straight line
Weight of Weld Head:
Height of Welding Gun: 0
Angle of Welding Gun: 0-360°
Loading Welding Wire:
As anexperienced orbital automatic pipeline welding machine manufacturer based inChina, Qianshan provides awide range of products that includes a pipeline end beveling machine, pipingfabrication fast fitting-up machine, heavy wall thickness piping automaticwelding machine, pipe fabrication workstation, and much more.
