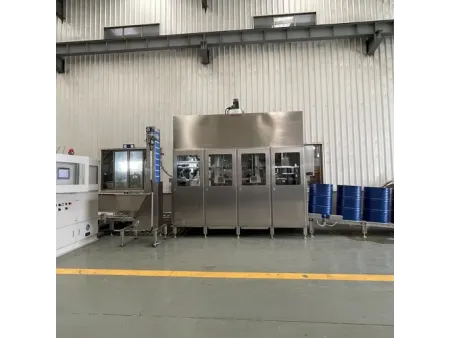

Automatic Drum Filling Machine
Request a Quote
(Photoelectric & Vision Alignment)
Specifications
- Filling speed: 35-40 drums/hour (single station), 130-150 drums/hour (4 stations), depending on material properties and supply pressure
- Filling range: 60-220L
- Container type: plastic/steel drum
- Filling method: gravimetric filling
- Conveyor type: linear conveyor
- Number of filling stations: 1-4
- Max. weighing capacity: 300kg
- Scale interval: 100g
- Filling accuracy: ±0.2%
- Operating temperature: -10℃ to 40℃
- Power supply: 380V, 50Hz (or customized)
- Air supply: 0.4-0.6MPa
- Explosion-proof configuration is optional for operation in hazardous areas and explosive environments
- Equipment dimensions: length is customized according to site layout, standard depth approx. 2m, height not exceeding 3m
Automation Level
- Automatic feeding: Yes
- Automatic bunghole positioning: Yes
- Automatic cap loosening: Yes
- Automatic quantitative filling: Yes
- Automatic cap placement: Yes
- Automatic capping/tightening: Yes
- Automatic labeling: No
- Automatic palletizing/wrapping: No
Material Properties
- Flammable & explosive: Applicable
- Toxic & hazardous: Applicable
- High viscosity: Applicable
- Highly corrosive: Applicable
- Volatile: Applicable
- Easily solidifying: Applicable
Auxiliary Equipment
- Conveyor system: Optional
- Empty container store warehouse: Optional
- Cartesian palletizer (gantry palletizer): Optional
- Labeling machine: Optional
- Cap organizing & capping machine: Optional
- Stretch wrapping machine: Optional
Features
- High degree of automation, reducing labour requirements
- Multifunctional configuration to meet diverse production demands
- Safe and environmentally compliant operation, reducing emissions and contamination
- Suitable for large-scale production involving toxic, hazardous, volatile, flammable or explosive chemical materials
- Configurable with long lance or short lance according to product characteristics; available with 1-4 filling stations and dedicated cap loosening and capping stations
Industry Applications
Designed for automatic alignment, automatic capping and automatic filling of lubricating oils, antifreeze, adhesives, cleaning liquids, detergents and various chemical products. The filling system is suitable for high-viscosity materials as well as toxic, hazardous, flammable or explosive liquids requiring automated and precise filling operations.
