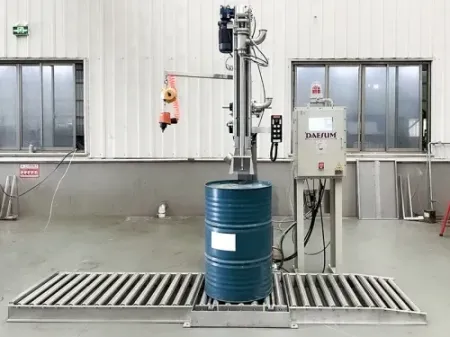

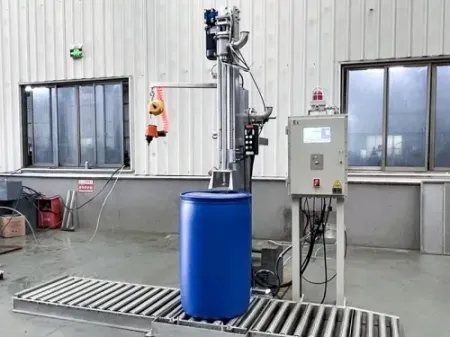

Semi-Automatic Drum Filling Machine
Request a Quote
Specifications
- Filling speed: 35-40 drums/hour (depending on material properties, supply pressure and operator proficiency)
- Number of filling stations: 1
- Max. weighing capacity: 300kg
- Scale interval: 100g
- Filling method: gravimetric filling
- Filling accuracy: ±0.2%
- Filling range: 60-220L
- Conveyor type: linear conveyor
- Operating temperature: -10℃ to 40℃
- Power supply: 380V, 50Hz (or customized)
- Air supply: 0.4-0.6MPa
- Explosion-proof configuration is optional for operation in hazardous areas and explosive environments
Automation Level
- Automatic feeding: No
- Automatic bunghole positioning: No
- Automatic cap loosening: No
- Automatic quantitative filling: Yes
- Automatic capping/tightening: No
- Automatic labeling: No
- Automatic palletizing/wrapping: No
Material Properties
- Flammable & explosive: Applicable
- Toxic & hazardous: Applicable
- High viscosity: Applicable
- Highly corrosive: Applicable
- Volatile: Applicable
- Easily solidifying: Applicable
Auxiliary Equipment
- Conveyor system: Optional
- Empty container store warehouse: Optional
- Cartesian palletizer (gantry palletizer): Optional
- Labeling machine: Optional
- Cap organizing & capping machine: Optional
- Stretch wrapping machine: Optional
Features
- Low equipment investment with moderate capital requirements.
- Minimal roller conveyor configuration, compact footprint, and high flexibility.
- Interchangeable filling lance design, allowing one product per lance or multiple lances for multiple products.
- Equipped with forklift-access brackets for convenient relocation.
- Suitable for low annual production volumes with multiple product types.
Recommended Filling Applications
The drum filling machine is suitable for quantitative filling of lubricants, antifreeze, adhesives, cleaning liquids, detergents, and various chemical materials. It can meet filling requirements for high-viscosity products, toxic and hazardous substances, as well as flammable and explosive materials in special industrial environments.
