Combined Drawing Line
Our combined drawing line is an integrated system designed for the continuous processing of various metals, including steel, copper, aluminum, stainless steel, and alloys. This combined drawing system is engineered to transform raw materials into round and profiled bars through a seamless sequence of drawing, straightening, cutting and surface finishing.
Specifically built for industrial-scale manufacturing, this combined drawing machine handles inlet diameters ranging from Ø30 mm to Ø8 mm with a pulling force of 3 to 25 tons. The bar drawing line integrates multiple processing units including pay-off, prestraightener, shot blasting machine, drawing unit, profile straightener, hydraulic shear, guide rack, 2-roll straightening machine, and delivery table.
| Maximum Pulling Force | 200 kN |
| No-Load Drawing Speed | 5–50 m/min (infinitely variable speed) |
| Processing Range |
|
| Processing Length | 2m–12m (±5 mm) |
| Surface Roughness of Finished Product | Ra0.4–0.8μm |
| Straightness of Finished Product | Round bar ≤0.3mm/m |
| Dimensional Tolerance | ±0.02mm |
| Total Power | Approx. 250kW |
| Main Motor Power | 160kW |
| Power Supply | Three-phase 380V/50Hz |
| Air Pressure | 4MPa ± 1MPa |
| Total Machine Weight | Approx. 68t |
-

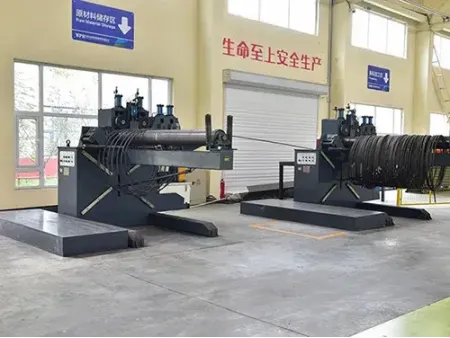

- Pay-off system: 1 hydraulic pump station, 1 electrical control cabinet
- Pinch roll transmission unit: 1 set
- Horizontal straightening unit: 7 straightening rolls (material: CR12MOV)
- Base frame: 1 unit
Pay-Off Unit -
- Fully enclosed design without foundation pit requirement
- Pre-straightening device: 1 set

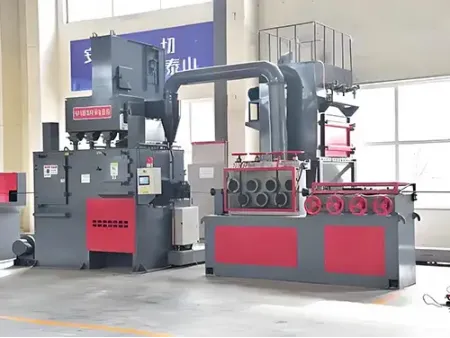

- Built-in shot blasting unit designed for wire processing
- Blasting blades customized according to wire diameter
- Low wear parts with easy and quick replacement
- Compatible with combined drawing lines up to 100 m/min
- Power: 22 kW × 4
- Max. inlet diameter: Ø36 mm
Shot Blasting Machine -
- Straightening Machine Base: 1 set
- Guide Plate Mount: 1 set
- Safety Guard: 1 set
- Straightening Rolls (2 pcs): 1 set
- Electric Motor 22 kW: 2 units
- Helical Gear Reducer: 2 units
- Universal Coupling: 2 pcs
- Collection Unit: 1 set
Two-Roll Straightening Machine and Collection Unit -
- Encoder: 1 set
- Horizontal straightening unit: 1 set
- 9 horizontal rolls (rear 4 sets center adjustable)
- Vertical straightening unit: 1 set
- 9 vertical rolls (lower 4 sets center adjustable)
- Bearing brand: NS
Precision Straightening System -
- Drawing frame: integral cast structure, 1 unit
- Main reducer and coupling: 1 set (gear material: 20CrMnTi, ground gears), dual cam system and main drive shaft: 1 set
- Drawing carriage and sliding guide rail: 1 set
- Die holder: outer and inner die holders, 1 set (servo motor adjustable; operation positions at drawing machine and shearing machine, both operable), with hydraulic pushing device
- Lubrication system: 1.5 kW three-phase electric pump, A5.7 Wuxi Pioneer DC motor: 1 unit
- Bearing brand: NSK
Drawing Unit -
- Pinch roll device: 1 set
- Shearing carriage unit: 1 set
- Cutting mechanism (wear parts): 1 set
- Length measuring system: 1 set
- Servo motor and reducer: 1 set
- Hydraulic station: 1 set
- Bearing brand: NSK
Hydraulic Shearing Machine(Four-direction electric adjustment on drawing unit, die frame digitally adjustable)
-
- Vertical straightening unit: 7 straightening rolls
- Horizontal straightening unit: 7 straightening rolls
- Bearing brand: NSK
Pre-straightening Machine -
- Guide tube assembly: 1 set
- Base frame: 1 set
Guide Rack
