Inverted Wire Drawing Machine

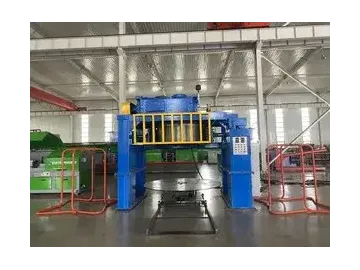

The inverted wire drawing machine (IVD) is a high-capacity wire drawing machine specifically engineered for processing large-diameter, heavy-duty metal wires. As an essential component in metal wire production lines, this vertical wire drawing machine is designed to handle raw materials with diameters up to Ø40 mm, performing precise cold drawing to achieve significant diameter reduction while ensuring superior metallurgical quality.
Equipped with a hydraulic automatic threading system, our inverted vertical drawing machine significantly reduces manual labor and ensures a stable, continuous wire drawing process. The wire is drawn through the die box under controlled tension and is then vertically wound onto an overhead inverted take-up drum, This vertical configuration allows for the formation of large-weight finished coils that are ready for immediate industrial use or downstream processing.
| Category | Parameter | Specification / Description |
| Processing Capacity | Applicable Materials | High, medium, and low carbon steel, spring steel, alloy steel, copper, stainless steel, tool steel, etc. |
| Max. Inlet Diameter | Ø40 mm | |
| Max. Finished Coil Weight | 2500 kg | |
| Drawing Performance | Drum Diameter | 1400 mm |
| Drawing Speed | 0–28 m/min (adjustable) | |
| Main Motor Power | 110 kW (6-pole) | |
| Auxiliary Functions | Take-up Conveyer Travel Distance | 2300 mm |
| Take-up Conveyer Rotation Motor Power | 4 kW | |
| Take-up Conveyer Travel Motor Power | 1.5 kW |
| Category | Parameter | Specification / Description |
| Dimensions | Main Machine Dimensions (L×W×H) | approx. 4650mm×4950mm×3400mm (including rails) |
| Core Components | Drum | Ø1400×600mm, surface coated with tungsten carbide, hardness HRC 63. |
| Die Box | Composed of powder box and die box sections; the die box is water-cooled and can be adjusted vertically for alignment. | |
| Straightening Unit | Five-roll straightener installed before the die box to ensure straight wire entry. | |
| Pressure Rollers | 6 imported wear-resistant and high-temperature resistant nylon rollers. | |
| Take-up Conveyer | Coil diameter Ø2200 mm; driven by 4 kW motor with frequency inverter. | |
| Reducers | Gear reducers (WPDS-80, WPDO-120). |
| Drive system | AC variable frequency motor with gear reducer |
| Control core | PLC intelligent control system |
| Speed control | AC frequency inverter (brand: INOVANCE / Huichuan) |
| Operating interface | Control panel |
| Hydraulic System | Used to drive the hydraulic automatic clamping system for automatic wire threading |
| Pneumatic System | Composed of cylinders, solenoid valves, and related components, used to control clamping actions such as pressure rollers |
| Air Supply Requirement | Pressure 0.6–0.8 MPa, flow rate ≥0.25 m³/min |
| Power Supply | Three-phase, 380V, 50Hz |
| Air Supply | Compressed air |
Material loading and pay-off → Threading and wire feeding (completed automatically by hydraulic system) → Drawing and take-up → Automatic stop at full coil and coil removal → Coil unloading and cycle restart

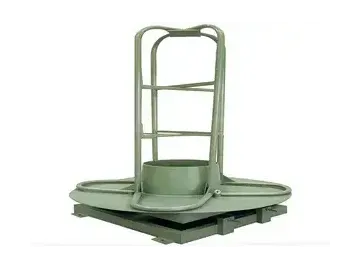

- 3.0-ton Damping Pay-off Unit
Positioned at the beginning of the production line and used for holding and uncoiling large-diameter metal wire coils (up to Ø40 mm). The damping mechanism provides adjustable braking force to ensure stable and uniform pay-off tension during the drawing process, preventing wire loosening due to inertia or breakage, and supporting stable downstream drawing.
- Take-Up Conveye
Not a passive component, but an integrated automated unit combining rotational winding, independent drive, and mobile unloading functions. Working together with the hydraulic automatic threading system of the main machine, it forms a complete automated process from loading, drawing, take-up to unloading, improving overall production efficiency.
- Wire Drawing Machine
Serves as the core equipment in the metal wire cold processing line. The drawing machine applies strong drawing force to pull large-diameter metal wire through the die, reducing its diameter while simultaneously winding it into large-weight finished coils.
