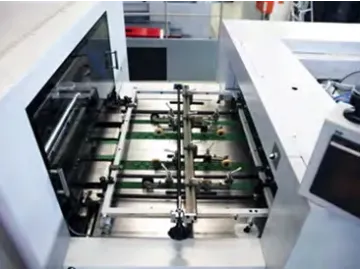

Automatic Flatbed Die Cutter
Request a Quote
Promatrix 106CSB
Watch Video
Promatrix 106CSB die cutting machines are used for paperboard packaging sheets that need die cutting, stripping, and finished blank separation in one process. They can process paper and solid cardboard from 90 to 2000g/m², as well as corrugated board below 4 mm. Promatrix 106CSB reaches up to 7500 sheets/hour and is GS certified, giving packaging converters a reliable option for high-speed post-press converting.
Technical Parameters
| Suitable Materials | |
| Paper (Min.) | 90 g/m² |
| Solid Cardboard (Max.) | 2000 g/m² |
| Corrugated Cardboard (Max.) | 4 mm |
| Operating Parameters | |
| Max. Sheet Size | 760 × 1060 mm |
| Min. Sheet Size | 350 × 400 mm |
| Max. Die-Cutting Pressure | 2.6 MN / 260 t |
| Max. Machine Speed | 7500 sheets/hour |
| Pile Height (including Pallet) | |
| Without Non-Stop Operation | 1500 mm |
| With Non-Stop Operation | 1200 mm |
| Max. Delivery Pile Height | 1200 mm |
Main Configuration
Non-stop Feeder
- The suction head feeds paper, board, and corrugated board into the die cutter with stable sheet pickup.
- Quick positioning on the suction head helps shorten feeder setup between jobs.
- The pile platform uses motorized side adjustment to keep the sheet stack aligned before feeding.
- Mechanical double-sheet detection checks the sheet flow and helps prevent two sheets from entering together.
Feeder Table
- The suction belt table keeps sheets flat and controlled as they move forward.
- Rollers and brushes are adjusted from one central point for easier feeder table setup.
- Before registration, each sheet is slowed down slightly so it enters the register system in a steadier position.
- The registration system positions each sheet before it enters the cutting station.
Die Cutting Unit
- The registration system keeps each sheet correctly positioned before die cutting.
- The die cutting pressure can be adjusted by motor according to the material and die cutting requirements.
- Pneumatic locking secures the die-cutting chase and cutting plate during setup and operation.
- The cutting plate can be adjusted in small steps for more accurate positioning.
- Equipped with an air cushion that helps operators move the cutting plate more easily during setup.
- The quick-lock chase shortens tool change time between jobs.
- An optional chase changer can be added when faster tool preparation is required.
Stripping Unit
- The registration system keeps sheets aligned before waste removal.
- Integrated quick-lock systems are used for the top, middle, and bottom stripping tools, reducing setup time during job changes.
- Tool position can be adjusted with position indicators, giving operators a clearer reference during setup.
- An optional pre-make-ready table can be used to prepare stripping tools before the next job change.
Blanking Unit
- Integrated quick-lock systems shorten tool changes in the blanking section.
- Tool position can be adjusted with position indicators for easier setup.
- Non-stop operation keeps finished blanks moving out while production continues.
- The automatic pallet change system reduces interruptions during finished stack handling.
- The separator sheet inserter places sheets between finished stacks, so each batch is easier to count and handle.
- The vacuum bar keeps blanks stable during separation and delivery.
Sample Sheet Removal
- Operators can take sample sheets during production without stopping the die cutter.
- Samples are sent to the sampling table after cutting and stripping, so quality can be checked more easily.
- Regular sampling helps operators find problems earlier and reduce scrap during production.
