DTH Surface Drill Rig
Request a Quote
Crawler-mounted drill rig for surface mining, quarrying and construction drilling

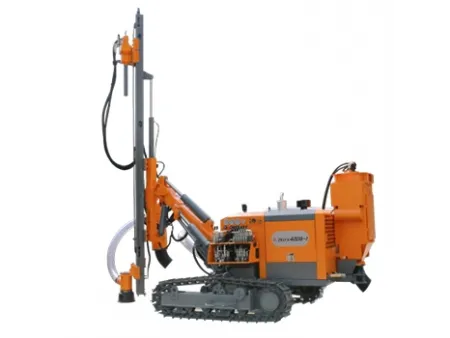

Separated DTH Surface Drill Rig: ZGYX-412B-1 / 416T-1 / 420B-1
Max. hole diameter: Ø90 / Ø115mm Recommended Air Compressors
Technical Specifications
Electric Portable Screw Compressors: 90SDY-14.5, 90SDYT-18
Diesel Portable Screw Compressors: 110SCYT-18, 141SCY-15, 145SCYT-18
| Emission standard | China II (MTO) | China III | China IV |
| Model | Yuchai YC4D80 | Yuchai YC4DK80 | Yuchai YCF3680 |
| Rated power | 56kW | 58kW | 59kW |
| Model | | | |
| Weight | 3950kg | 4620kg | 4620kg |
| Dimensions (L x W x H), mm | 4450x2080x2460 | 5700x2130x2300 | 5700x2130x2300 |
| China IV engine (standard) | Yuchai / 59 kW | ||
| Max. rotation torque | 1650N·m | 2200N·m | 2200N·m |
| Drilling hole diameter | Ø90-115mm | Ø90-115mm | Ø90-127mm |
| DTH hammer (standard) | 3.5'' | 3.5'' | 3.5'' / 4'' |
| Drilling rod | Ø60x2000mm | Ø60x3000mm | Ø60x3000mm |
| Diesel tank volume | 115L | 70L | 70L |

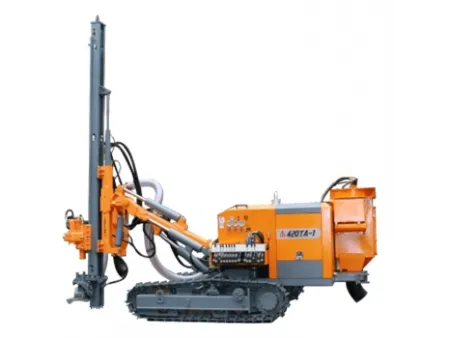

Separated DTH Surface Drill Rig: ZGYX-420TA-1 / 425-1 / 430-1
Max. hole diameter: Ø115 / Ø138mm Recommended Air Compressors
Technical Specifications
Electric Portable Screw Compressors: 110SDYT-18, 132SDYT-18
Diesel Portable Screw Compressors: 162SCYT-18, 186SCYT-18, 198SCYT-20
| Emission standard | China II (MTO) | China III | China IV |
| Model | Yuchai YC4A100 | Yuchai YC4DK100 | Yuchai YCF36100 |
| Rated power | 70kW | 73.5kW | 74kW |
| Model | | | |
| Weight | 5550kg | 6230kg | 6440kg |
| Dimensions (L x W x H), mm | 5600x2308x2500 | 7000x2250x2700 | 7120x2450x3540 |
| China IV engine (standard) | Yuchai / 74kW | ||
| Max. rotation torque | 3200N·m | 3200N·m | 3500N·m |
| Drilling hole diameter | Ø90-138mm | Ø90-138mm | Ø115-152mm |
| DTH hammer (standard) | 3.5'' / 4'' / 5'' | 3.5'' / 4'' / 5'' | 3.5'' / 4'' / 5'' |
| Drilling rod | Ø76x3000mm | Ø76x3000mm | Ø76x3000mm |
| Diesel tank volume | 70L | 80L | 110L |
Separated DTH Surface Drill Rig: ZGYX-431 / 845-1
Max. hole diameter: Ø138 / Ø152mm Recommended Air Compressors
Technical Specifications
Electric Portable Screw Compressors: 132SDYT-18, 185SDYT-24
Diesel Portable Screw Compressors: 220SCYT-22, 298SCYT-24
| Emission standard | China II (MTO) | China III | China IV |
| Model | Yuchai YC4A100 | Yuchai YC4DK100 | Yuchai YCF36100 |
| Rated power | 70kW | 73.5kW | 74kW |
| Model | | |
| Weight | 7340kg | 7460kg |
| Dimensions (L x W x H), mm | 7000x2300x2800 | |
| China IV engine (standard) | Yuchai / 74kW | |
| Max. rotation torque | 3500N·m | |
| Drilling hole diameter | Ø115-152mm | Ø115-165mm |
| DTH hammer (standard) | 4'' / 5'' | 4'' / 5'' / 6'' |
| Drilling rod | Ø76x3000mm | Ø76x3000mm |
| Diesel tank volume | 156L | |
Leveraging many years of global field experience to provide perfectly matched drilling tools, drill rigs, and air compressors for your toughest projects.
