Dual Shaft Bag Breaker, Waste Bag Opener
Request a Quote
Video

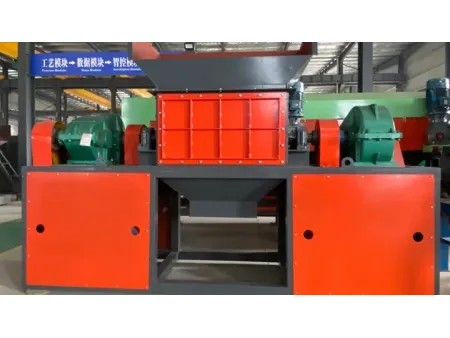

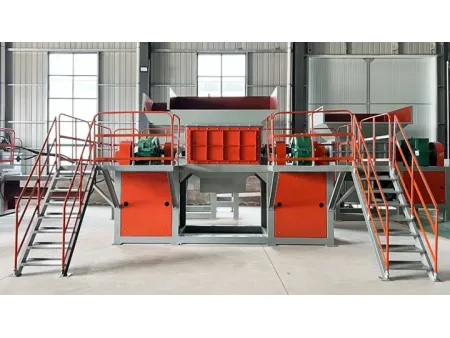

Dual shaft bag breakers open plastic bags, woven sacks, and other bagged waste before sorting or shredding. The two bag-opening shafts rotate toward each other at different speeds, and their specially shaped blades tear open plastic bags and woven sacks without breaking down most of the material inside. The operating speed can be adjusted for different waste conditions, and the PLC control allows the shafts to reverse when wrapping occurs. This helps release the contents more effectively and keeps the next screening, separation, or crushing stage from being blocked by unopened bags.
Technical Specifications
| Model | Rotor Length (mm) | Blade Thickness (mm) | Bag Opening Rate | Motor Power (kW) | Approx. Dimensions L×W×H (mm) | Capacity (t/h) |
| 1000 | 25 | >95% | 18.5 11 | 3950×1430×3330 | 5 | |
| 1200 | 25 | >95% | 22 11 | 4150×1430×3330 | 8 | |
| 1400 | 30 | >95% | 30 15 | 4350×1430×3330 | 12 | |
| 1600 | 30 | >95% | 37 22 | 4550×1430×3330 | 15 |
Features
- Bag opening only, no material crushing
Focuses on tearing bags open rather than grinding the contents, reducing fines and helping protect the performance of later screening, air separation, and sorting stages. - Replaceable blade tips
Worn tips can be replaced individually instead of changing the full blade assembly, which helps keep maintenance simple, control wear part costs, and maintain stable bag opening performance.
