Flat PC Dripper Irrigation Pipe Making Machine
Request a Quote
Polyethylene pipe extrusion line for producing driplines with pressure compensating (PC) flat emitters
The flat pc dripper irrigation pipe making machine is a fully automatic extrusion system designed for manufacturing water-saving drip irrigation pipes with uniform flow performance. The production line enables consistent discharge under varying operating pressures, significantly improving irrigation efficiency and crop yield.

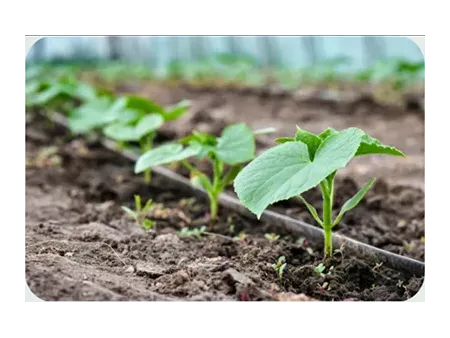

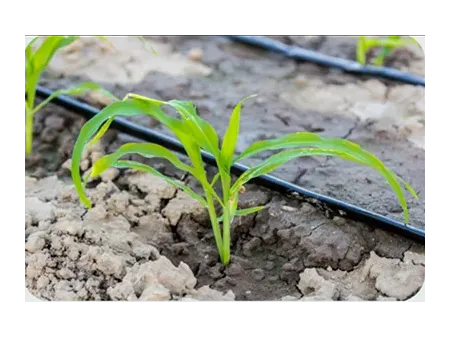

Product Applications
Main Components
- Dripper sorting disc
- Dripper conveying unit
- Extruder
- Die head
- Vacuum sizing tank and cooling water tank
- Laser marking unit
- Integrated haul-off and punching unit
- Drip irrigation pipe storage system
- Dual-station standard coiler
- Fully automatic coiling and strapping system
Technical Parameters
Product Parameters
- ItemSpecification
- Drip irrigation tape diameterØ16mm/Ø22mm/Ø25mm
- Drip irrigation tape wall thickness0.9-1.2mm
Machine Parameters
- ItemSpecification
- Single-screw extruder ASJ-75/32
- Designed production speed60m/min (300mm dripper spacing)
- Production line center height1000mm
- Dripper detection speed400pcs/min
- Dripper spacing100-1000mm
- Punching speed2000 cycles/min
- Punching methodMechanical punching
- Drip irrigation tape roll length500-2500m
- Total installed power95kW
- Max. extrusion output120kg
- Production line dimensions (L×W×H)25×2×3m
- Total line weightApprox. 6000kg
Key Features
- High-precision servo control system with imported PLC: Ensures stable and controllable production speed, accurate and consistent dripper spacing, and a product qualification rate exceeding 99%.
- Fully automated production line: From material feeding and online inspection to coiling, the integrated automation significantly reduces labor dependence, lowers operating costs, and improves overall production efficiency.
- Patented flat pressure compensating dripper structure: The produced drip irrigation pipes maintain uniform discharge under different terrains and pressure ranges (e.g. 1.0-4.0bar), significantly enhancing irrigation uniformity and achieving water savings of more than 30%.
- Flexible customization capability: Supports customized dripper spacing, tape width, color, and printing to meet specific crop and application requirements, enabling customers to address diverse irrigation scenarios and expand market opportunities.
Projects
A flat dripper irrigation pipe making machine installed for a customer in Russia received high satisfaction feedback, with plans to purchase additional production lines.
A customer in India confirmed satisfaction after receiving samples produced by the production line.
