Flat and Satchel Bag Making Machine

Request a Quote

View All: http://znep-bagmaking.com/6-flat-and-satchel-bag-making-machine.html

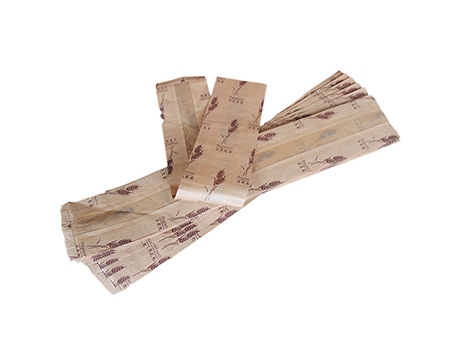

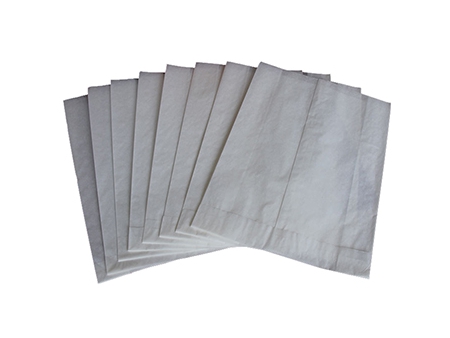

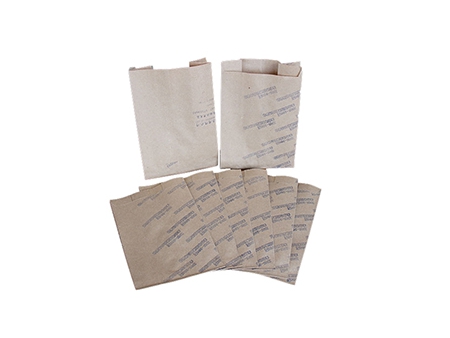

This bag making machine is designed for the manufacturing of flat bottom paper bag, also called V-bottom or sharp bottom paper bag. These paper bags are commonly applied for the packaging of French fries, bread, and other food products. This equipment can be designed with a printing function, which is an extremely efficient and affordable paper bagging machine.

Parameters

Model	ZNS-280	ZNS-350
Max. paper roll width	900 mm	1000 mm
Max. diameter of paper roll	Ø1200 mm	Ø1200 mm
Inner diameter of paper roll	Ø76 mm	Ø76 mm
Finished paper bag width	80-280 mm	80-350 mm
Cut-off length	120-450 mm	120-720 mm
Gusset	0-60 mm	0-80 mm
Bottom folded width	15-35mm	20-40mm
Paper gram	30-80 g/m²	35-100 g/m
Max. production speed	500 bags/min	600 bags/min
Line speed	100 m/min	120 m/min
Working air pressure	0.6-0.8MPa	0.6-0.8MPa
Total power	380V3P4L 22kW	380V 3P4L 22kW
Machine weight	6000 kg	7000 kg
Overall dimension	750020001850 mm	800021001900 mm

Production Process

Paper Roll Feeding
Printing
Perforating
Edge Gluing
Tube Forming
Tube Cut-off
Bottom Gluing
Final Bag

The flat paper bag making machine with a Mitsubishi electrical control system is operated under servo motor control, ensuring high stability and efficient performance. The specifications of the paper bags can be controlled through its user-friendly touch screen interface. This delivers high production efficiency and allows for easy maintenance.

Machine Configurations

2. FEEDING UNIT
  The roll paper fixed on the air expanding mandrel can be fed by swing arm which is equipped with lifting hydraulic system. With an alarm function, the feeding unit will sound alarm when there is no paper feeding. Improved surface smoothness of the paper during the feeding is achieved due to the web guide and uniform tension control. Paper rolls can be easily changed by pressing a button.
2. BAG FORMING UNIT
  Form the paper with punched holes into the tube; and snap it into separate pieces based on the settings. Afterwards, these separate tubes will be sent to the drum to fold the bottom before bags collection.
2. BAG COLLECTING UNIT
  Compress the bags and outlet the bags. The number of paper bags can be processed and displayed by the automatic collection and counting system.
2. Optional inline print press can be added to achieve printing function.
