DXDK950Q, Full-Servo 4-Side Seal Sachet Packaging Machine for Granule & Liquid
Pharmaceutical Packaging Machinery Since 1998
- Max. packaging speed: up to 400 packs/min

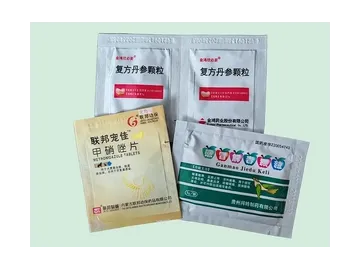

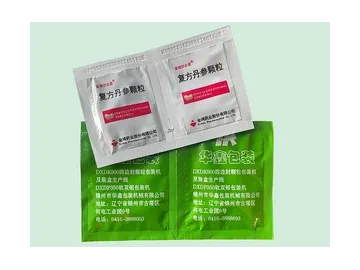

- Suitable for packaging granules, pills, and liquids using laminated films with four-side sealing
The sachet packaging machine can sequentially complete automatic film unwinding, slitting, registration, longitudinal sealing, transverse sealing, product filling, batch coding, horizontal tear line, vertical tear line, easy-tear notch forming, longitudinal cutting, transverse cutting, finished product conveying, and waste collection. The entire packaging process is fully enclosed. It is suitable for packaging granules, capsules, and liquid formulations.
The equipment adopts a full-servo configuration, with all stations driven by servo motors. Parameter adjustments are completed via the touch screen, improving control accuracy while simplifying operation, reducing maintenance requirements, and extending machine service life.
- Four-side sealing with simultaneous multi-lane sachet packaging
- Full-servo control for reliable performance, easy operation, and high efficiency
- Photoelectric registration tracking ensures accurate alignment of double-sided printed patterns
- Filling, longitudinal and transverse sealing, batch coding, tear lines, and cutting are adjustable via the HMI
- Stepless bag length adjustment without mold change when bag length varies
| Film thickness | 0.05–0.1 mm |
| Cutting frequency | 20–60 cuts/min (adjustable) |
| Packing dose | Granules: 2–20 g/sachet Liquids and semi-liquids: 5–40 ml/sachet |
| Bag length | 50–120 mm |
| Bag width | 65–120 mm |
| Max. film width | 950 mm |
| Max. packaging speed | 400 packs/min |
| Max. number of vertical lanes | 10 sachets |
| Air consumption | 3.2 L/hour |
| Installed power | 12.1 kW |
| Power supply | 380 V, 50 Hz |
| Dimensions (L*W*H) | 1500 × 1540 × 2200 mm |
| Weight | 1200 kg |
-
- Feeding station
-
- Sealing station
On-site operation of DXDK950Q sachet packaging machine demonstrates its integrated automatic feeding, dosing, and sealing functions. Equipped with a high-precision screw dosing system, the machine ensures stable and accurate filling throughout continuous production.
The sachet packaging machine is compatible with commonly used laminated films (such as PET/PE). Film rolls must be evenly wound without telescoping or eccentricity, as these may cause film feeding issues. Clear and consistent registration marks are essential for accurate pattern positioning. Recommended film thickness is within the designed range (e.g. 0.05–0.1 mm). For special materials, prior consultation is recommended.
The 4-side seal sachet packaging machines are suitable for strip-style light-shielding packaging and are recommended for powders requiring high light protection and sealing performance.
Full-servo packaging machines use servo motors at all stations, offering higher precision and speed, making them suitable for high-standard production environments. Dual-servo machines use servo drive for longitudinal sealing and support automatic double-sided registration tracking, making them more suitable for medium-output applications. Equipment selection can be optimized based on specific production requirements.
