Sachet Granule Packaging Machine
Vertical Form Fill Seal Machines for Granular Products
- Packaging Lane
- 1
- Dosing System
- Cup Filler
- Sachets Per Hour
- 1200-2400
- Film Roll Width
- Up to 170mm
- Sachet Size (Length × Width)
- 50-160mm × 16-80mm

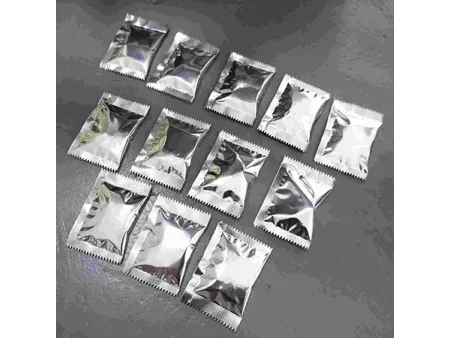

Our sachet granule packaging machine is highly versatile and can be widely applied in industries such as cosmetics, food, pharmaceuticals, and health supplements. It is ideal for packaging materials like sugar, pharmaceutical granules, coffee granules, and granular desiccants.
- Yellow sugar
- Salt
- White sugar
- Powder
- Probiotics
- Desiccant
- Pepper
- Seaweed
Our packaging machine is designed with advanced features to elevate your production experience:
- Effortless Cleaning: Equipped with high-efficiency anti-fingerprint technology, making maintenance easier for you.
- Precision and Speed: Features a programmable bus system and bus servo for faster and more accurate operations.
- Perfect Packaging: Color sensors ensure precise alignment of packaging film color marks for complete and flawless patterns.
- Industry 4.0 Ready: Connects smoothly to SCADA and MES systems, aligning with modern smart manufacturing standards
- User-Friendly Interface: Offers fault alerts, self-diagnostic functionality, and supports 12 commonly used operation languages for your convenience.
- Certifications You Trust: Complies with GMP production standards, EU CE certification, and CUL certification for electrical components.
- Durable Build: Made with SUS304 stainless steel and aluminum alloy, with all material-contact parts crafted from SUS304 for hygiene and reliability.
- Precise Temperature Control: Independent bus-based temperature module with precision control within ±0.1°C. All temperature settings and displays are easily managed via the touchscreen interface.
- Smart Detection Systems: Includes automatic film break and film shortage detection with alarm and shutdown capabilities, along with film correction and splicing features.

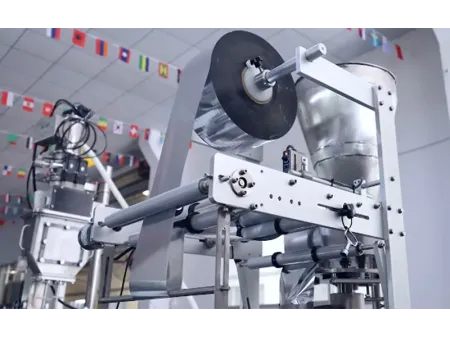

This machine is perfect for your single-lane packaging needs of uniformly dense granular materials. It features a high-precision rotary volumetric cup filler dosing system, crafted from durable SUS304 stainless steel, ensuring accuracy and high-speed filling. With a maximum roll film width of 170mm, it produces sachets tailored to your requirements, ranging from 16-80mm in width and 50-160mm in length. You can rely on its adjustable dosing and rotary feeding system to maintain precision and efficiency. Operating at a speed of 20-40 bags per minute, this machine also allows for quick and easy cleaning, thanks to its detachable contact parts. Plus, the vertical 90° sealing device ensures outstanding seal quality while simplifying maintenance.
Seal Type: Back Seal, 3 Side Seal, 4 Side Seal
(VFFS Machine for Granular Products)
| Model | |
| Number of Packaging Lanes | 1 |
| Dosing System | Rotary Cup Filler |
| Packaging Speed | 1200-2400 sachets/hour |
| Film Roll Width | Max.170mm |
| Inner Diameter of Film Roll | 75mm |
| Outer Diameter of Film Roll | Max.300mm |
| Sachet Width | 16-80mm |
| Sachet Length | 50-160mm |
| Seal Type | Back Seal |
| Cut Type | Round Cut, Straight Cut, Zigzag Cut |
| Power Supply | 220V, 1P, 50/60HZ, 5kW |
| Air Pressure (Consumption) | 0.6-0.8MPa (17-25L/min) |
| Machine Weight | Approx. 300kg |
(VFFS Machine for Granular Products)
| Model | |
| Number of Packaging Lanes | 1 |
| Dosing System | Rotary Cup Filler |
| Packaging Speed | 1200-2400 sachets/hour |
| Film Roll Width | Max.160mm |
| Inner Diameter of Film Roll | 75mm |
| Outer Diameter of Film Roll | Max.300mm |
| Sachet Width | 16-80mm |
| Sachet Length | 50-160mm |
| Seal Type | 3 Side Seal |
| Cut Type | Round Cut, Straight Cut, Zigzag Cut |
| Power Supply | 220V, 1P, 50/60HZ, 5kW |
| Air Pressure (Consumption) | 0.6-0.8MPa (17-25L/min) |
| Machine Weight | Approx. 300kg |
(VFFS Machine for Granular Products)
| Model | |
| Number of Packaging Lanes | 1 |
| Dosing System | Rotary Cup Filler |
| Packaging Speed | 1200-2400 sachets/hour |
| Film Roll Width | Max.160mm |
| Inner Diameter of Film Roll | 75mm |
| Outer Diameter of Film Roll | Max.300mm |
| Sachet Width | 40-80mm |
| Sachet Length | 50-160mm |
| Seal Type | 4 Side Seal |
| Cut Type | Round Cut, Straight Cut, Zigzag Cut |
| Power Supply | 220V, 1P, 50/60HZ, 5kW |
| Air Pressure (Consumption) | 0.6-0.8MPa (17-25L/min) |
| Machine Weight | Approx. 300kg |
