XPB Series
Applicable Fluid Media
  • Cement slurry: Foundation reinforcement, curtain grouting, and crack filling
  • Water: High-pressure water cutting
  • Chemical slurry: Anti-seepage treatment treatment, leakage plugging, and chemical reinforcement

The XPB series high-pressure grouting pump is a conventional, general-purpose pump. It offers moderate pressure, a compact design, and affordable pricing, making it a cost-effective option with high performance. The hydraulic end of this product adopts a split-type combined pump head design for easy disassembly. The power end uses rolling-bearing transmission, offering low noise, reduced temperature rise, and extended sealing service life up to 60%, ensuring reliable 24-hour continuous operation.

This high-pressure pump is suitable for high-pressure jet grouting for ground treatment, curtain grouting, retaining cofferdams, mine leakage plugging, shaft lining protection, slope anchoring, and other application fields. In addition, it has obtained a national patent.

  • Model Specifications
  • Application Scenarios
  • Customer Cases
Model Specifications

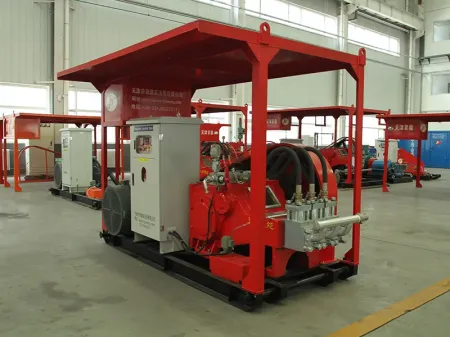

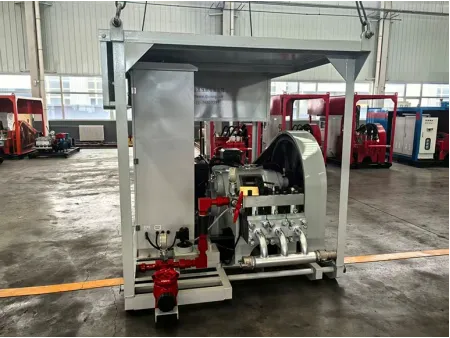

High-Pressure Jet Grouting Pumps XPB-90EX

  • Max. pressure: 60 MPa
  • Max. flow: 300 L/min
  • Dimensions: 2960.5×1400×1302 mm
  • Weight: 2500 kg
4-Pole Variable Frequency Motor Version
Motor Speed (r/min) 1480 Plunger Stroke (mm) 80
Theoretical Flow Motor Power (kW) Plunger Dia. (mm)
55 75 90 110 132
m³/h L/min Rated Pressure (MPa)
5.6 94 33 45 54 60 60 50
6.8 114 27 37 44 54 56 55
8 135 23 31 37 46 50 60
9.5 159 19 26 32 39 45 65
11 184 16 23 27 33 39 70
12.7 212 14 20 24 29 34 75
14.4 241 12 17 21 25 30 80
6-Pole Variable Frequency Motor Version
Motor Speed (r/min) 980 Plunger Stroke (mm) 80
Theoretical Flow Motor Power (kW) Plunger Dia. (mm)
55 75 90 110 132
m³/h L/min Rated Pressure (MPa)
3.7 62 48 60 60 50
4.5 75 40 55 55 60 55
5.3 89 33 45 45 56 60 60
6.3 105 28 40 40 48 56 65
7.2 121 24 35 35 40 48 70
8.3 139 21 30 30 35 42 75
9.5 159 18 26 26 31 35 80
Electromagnetic Speed Regulating Motor Version
Motor Speed (r/min) 1320 Plunger Stroke (mm) 80
Theoretical Flow Motor Power (kW) Plunger Dia. (mm)
55 75 90 110 132
m³/h L/min Rated Pressure (MPa)
13 217 12 17 20 25 30 80
11 188 14 19 23 28 34 75
9.9 165 16 22 26 32 39 70
8.6 141 18 25 31 38 45 65
7.1 119 22 30 37 45 50 60
6.0 100 26 37 44 53 56 55
5.0 83 32 44 53 60 60 50
XPB-90EX 4-Pole Variable Frequency Motor Version

Small pulley: 212 mm; large pulley: 800 mm; stroke rate: 151 SPM

Motor Speed (r/min) 1480 Plunger Stroke (mm) 80
Theoretical Flow Motor Power (kW) Plunger Dia. (mm)
55 75 90 110 132
m³/h L/min Rated Pressure (MPa)
4.28 71 42 58 70 85 102 50
5.17 86 35 48 57 70 84 55
6.15 102 29 40 48 59 71 60
7.23 120 25 34 41 50 60 65
8.38 140 22 30 35 43 52 70
9.6 160 19 26 31 38 45 75
10.9 182 17 23 27 33 40 80
XPB-90EX 6-Pole Variable Frequency Motor Version

Small pulley: 236 mm; large pulley: 800 mm; stroke rate: 111 SPM

Motor Speed (r/min) 980 Plunger Stroke (mm) 80
Theoretical Flow Motor Power (kW) Plunger Dia. (mm)
55 75 90 110 132
m³/h L/min Rated Pressure (MPa)
3.15 53 58 79 94 115 138 50
3.8 64 48 65 78 95 114 55
4.5 75 40 55 66 80 96 60
5.33 89 34 47 56 68 81.9 65
6.2 105 29 40 48 59 70.6 70
7.1 118 26 35 42 51 61.5 75
8.0 134 23 31 37 45 54 80
XPB-90EX 4-Pole Variable Frequency Motor Version

Small pulley: 236 mm; large pulley: 800 mm; stroke rate: 168 SPM

Motor Speed (r/min) 1480 Plunger Stroke (mm) 80
Theoretical Flow Motor Power (kW) Plunger Dia. (mm)
55 75 90 110 132
m³/h L/min Rated Pressure (MPa)
4.76 79 38 52 62 76 92 20
5.76 96 31 43 52 63 76 55
6.84 114 26 36 43 56 64 60
8.05 134 23 31 37 45 65 65
9.3 155 20 27 32 39 47 70
10.7 178 17 23 28 34 41 75
12.2 203 15 20 24 30 36 80
XPB-90EX 6-Pole Variable Frequency Motor Version

Small pulley: 212 mm; large pulley: 800 mm; stroke rate: 100 SPM

Motor Speed (r/min) 980 Plunger Stroke (mm) 80
Theoretical Flow Motor Power (kW) Plunger Dia. (mm)
55 75 90 110 132
m³/h L/min Rated Pressure (MPa)
2.82 47 64 88 105 129 154 50
3.4 57 53 72 87 106 127 55
4.07 68 45 61 73 89 107 60
4.76 80 38 52 62 76 91 65
5.5 92 33 45 54 66 79 70
6.4 106 29 39 47 57 68 75
7.2 120 25 34 41 50 60 80

Note: The above parameters are theoretical data based on a medium specific gravity of 1.0.

High-Pressure Grouting Pump XPB-50

  • Max. pressure: 48 MPa
  • Max. flow: 190 L/min
Input Speed (min-1) 1480 Plunger Stroke (mm) 110
Gear Reduction Ratio (i) 7.22 Strokes (r/min) 205
Motor Power (kW) 37 45 55 Plunger Dia. (mm)
Nominal Flow Rated Pressure (MPa)
m³/h L/min
6.4 107 19 23 28 45
7.9 132 15 18 22 50
9.6 160 12 15 18 55
11.4 191 10 12 15 60
Dimensions (mm): 2560×1400×870

Note: The above parameters are theoretical data based on a medium specific gravity of 1.0.

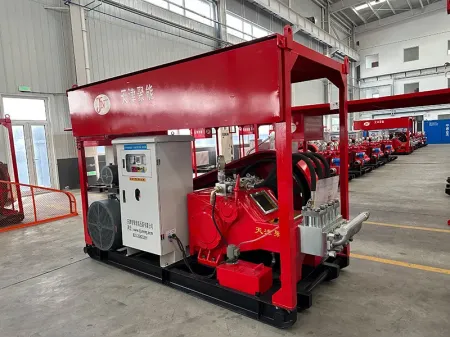

High-Pressure Jet Grouting Pumps XPB-90D

  • Max. pressure: 50 MPa
  • Max. flow: 125 L/min
Motor Speed (r/min) 1340 Plunger Stroke (mm) 120
Theoretical Flow Motor Power (kW) Plunger Dia. (mm)
55 75 90
m³/h L/min Rated Pressure (MPa)
7.5 125 22 32 38 50
6.0 100 28 39 45 45
4.8 80 33 45 55 40
Dimensions (mm): 3490×1700×1630

Note: The above parameters are theoretical data based on a medium specific gravity of 1.0.

Application Scenarios

The high-pressure grouting pump is suitable for:

  • Ground treatment
  • Curtain grouting
  • Retaining cofferdams
  • Mine leakage plugging
  • Shaft lining protection
  • Slope anchoring

Typical applications include:

Building & Foundation Engineering

Foundation reinforcement and excavation support

Transportation Engineering

Highway and railway subgrade reinforcement, bridge foundation treatment, and tunnel engineering

Municipal Engineering

Metro construction and underground pipeline repair

Mining Engineering

Shaft support and goaf filling

Hydropower & Water Conservancy

Dam foundation grouting, canal and reservoir anti-seepage, and embankment reinforcement

Environmental Remediation

Contaminated soil solidification, landfill anti-seepage systems, and emergency landslide stabilization

Customer Cases

Gezhouba Three Gorges Construction Project

In Xi’an metro construction projects, the high-pressure jet grouting pump is mainly used for grouting reinforcement, filling voids, and preventing water leaks.

Cement grouting machines are commonly used in dam and underground structure anti-seepage and leakage control projects to improve waterproofing performance.

A high-pressure grouting pump is used for post-lining grouting in tunnels to fill voids and prevent settlement.
