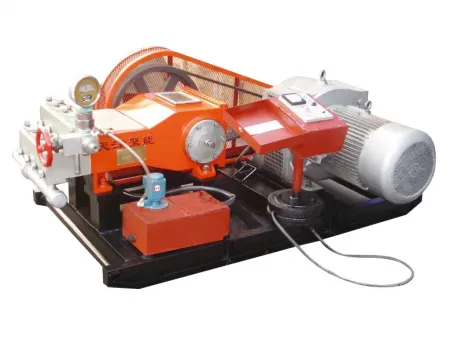

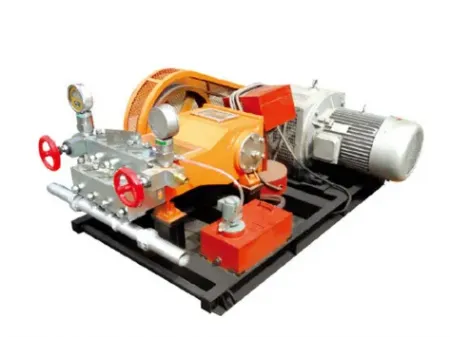

Low-Pressure Jet Grouting Pump
- Max. pressure: 9.5 MPa
- Max. flow: 160 L/min
- Max. pressure: 12 MPa
- Max. flow: 182 L/min
XBP-10 series low-pressure grouting pump is specifically designed for low-pressure, high-volume operating conditions. It is a reliable solution for compaction grouting, secondary grouting, and dual-liquid grouting applications. The pump is available in single-liquid, dual-liquid, and triple-liquid low-pressure configurations to meet diverse project requirements.
- Each working cylinder adopts an independent slurry intake and discharge system, meeting various multi-liquid grouting requirements
- Each discharge pipeline is equipped with a check valve at the front end to prevent different liquids from mixing inside the pump, effectively avoiding operational failures caused by premature solidification
- The check valve is installed close to the working surface, enhancing operational safety
- Constructed with corrosion-resistant materials
- Three-plunger design ensures stable working pressure, while ball valves provide long service life, reliable sealing performance, and convenient maintenance
All pump models can be customized into triple-liquid configurations. The parameters shown below represent only one configuration example. You may select parameter combinations that meet your construction requirements, or contact us directly for free recommendations on parameter configuration.
XPB-10 Dual-Liquid Low-Pressure Grouting Pump
| Input Speed (r/min) | 1300 | Plunger Stroke (mm) | 85 | |||
| Theoretical Flow | Motor Power (kW) | Plunger Dia. (mm) | ||||
| 11 | 15 | 18.5 | 22 | |||
| m³/h | L/min | Rated Pressure (kgf/cm²) | ||||
| 9.6 | 160 | 25 | 35 | 45 | 52 | 50 |
| 7.8 | 130 | 32 | 45 | 55 | 65 | 45 |
| 6 | 100 | 46 | 55 | 70 | 85 | 40 |
| 5.4 | 90 | 50 | 65 | 80 | 95 | 38 |
| 4.8 | 80 | 58 | 80 | 95 | - | 35 |
| 3.3 | 55 | 80 | - | - | - | 30 |
Note: The above parameters are theoretical data based on a medium specific gravity of 1.0.
XPB-10 Single-Liquid Low-Pressure Grouting Pump
| Input Speed (r/min) | 1460 | Plunger Stroke (mm) | 85 | |||
| Theoretical Flow | Motor Power (kW) | Plunger Dia. (mm) | ||||
| 11 | 15 | 18.5 | 22 | |||
| m³/h | L/min | Rated Pressure (kgf/cm²) | ||||
| 10.9 | 182 | 31 | 42 | 52 | 62 | 50 |
| 8.8 | 147 | 38 | 53 | 65 | 77 | 45 |
| 6.9 | 116 | 49 | 67 | 82 | 98 | 40 |
| 6.3 | 105 | 54 | 74 | 91 | 108 | 38 |
| 5.3 | 89 | 64 | 87 | 108 | - | 35 |
| 3.9 | 65 | 88 | 120 | - | - | 30 |
| Input Speed (r/min) | 1300 | Plunger Stroke (mm) | 85 | |||
| Theoretical Flow | Motor Power (kW) | Plunger Dia. (mm) | ||||
| 11 | 15 | 18.5 | 22 | |||
| m³/h | L/h | Rated Pressure (kgf/cm²) | ||||
| 9.6 | 160 | 25 | 35 | 45 | 52 | 50 |
| 7.8 | 130 | 32 | 45 | 55 | 65 | 45 |
| 6 | 100 | 46 | 55 | 70 | 85 | 40 |
| 5.4 | 90 | 50 | 65 | 80 | 95 | 38 |
| 4.8 | 80 | 58 | 80 | 95 | - | 35 |
| 3.3 | 55 | 80 | - | - | - | 30 |
A dual-liquid grouting machine mixes cement slurry and chemical slurry according to a preset ratio, enabling rapid leakage sealing and anti-seepage treatment. It is commonly used in metro and tunnel engineering projects.
