Hydraulic Drifters
Request a Quote
Play Video
LM16E
Non-Blasting Rock Excavation- Impact Output Power: 16kW
- Drilling Diameter: Ø76-89mm

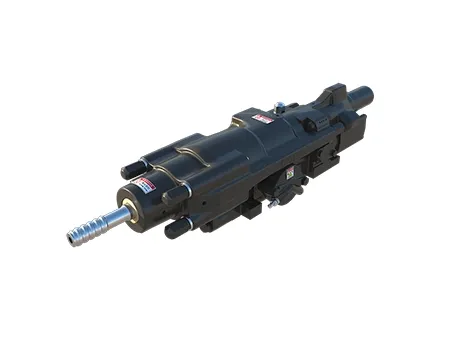

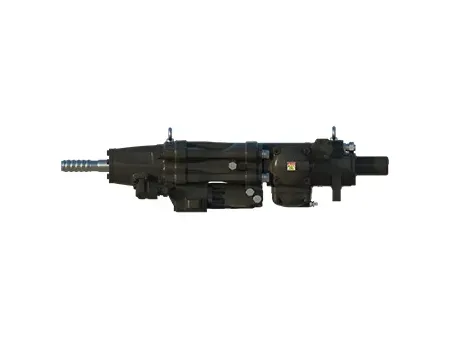

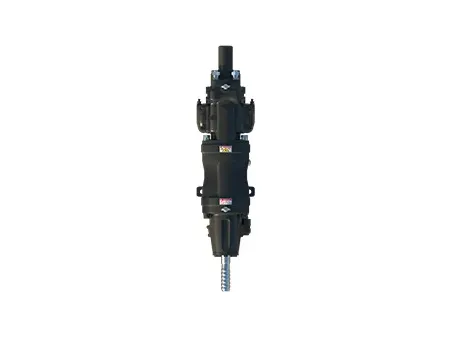

The LEM16E hydraulic drifter is a high-frequency impact hydraulic drifter engineered with an improved rotation mechanism for enhanced torque stability. The drifter unit features an integrated internal oil-mist lubrication system.
Specifically optimized for both underground and surface operations, the LEM16E excels in underground mining and tunneling, open-pit excavation and quarrying, water conservancy, national defense infrastructure, and rock excavation.
The drifter is compatible with R38 and T45 threads, with the T38 shank adapter provided as the standard configuration.
→
Product Parameters
| Max. Impact Output Power | 16kW |
| Impact Frequency | 50Hz |
| Max. Impact Pressure | 180bar |
| Impact Oil Flow | 65L/min |
| Max. Rotation Torque | 960Nm |
| Rotation Speed | 0-200rpm |
| Max. Rotation Pressure | 120bar |
| Rotation Oil Flow | 60L/min |
| Drilling Diameter Range | 76-89mm |
| Compatible Shank Adapters | R38/T38/T45 |
| Operating Weight | 185kg |
Accessories
Copper sleeve
Main drive gear
T45 shank
Drill string flushing
Spline wear sleeve
Diaphragm
