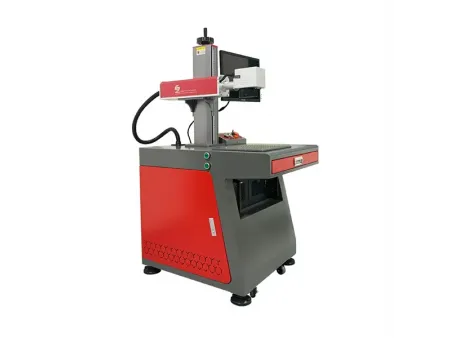

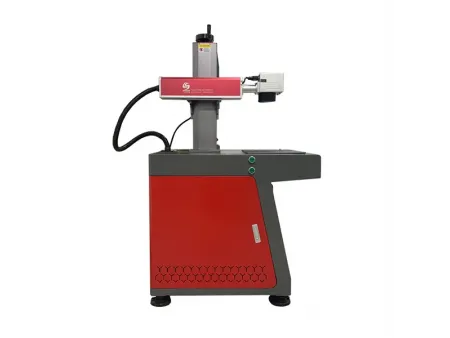

Laser Engraving Machine 20W 30W 60W 100W
Request a Quote
- Laser type: MOPA Laser
- Laser Power: 20 / 30 / 60 / 100 / 120W
- Marking Area ≤300*300mm
- Pulse Width: 30-100 ns
The MOPA Fiber Laser Marking Machine includes a MOPA laser source. It delivers top-notch marking results on plastics. The MOPA source stands out from regular fiber lasers. It offers adjustable pulse width. You can also adjust standard settings, such as power, speed, and frequency. This flexibility is particularly beneficial for marking thermally sensitive materials, such as plastics. It provides better results with more contrast. This happens because it allows precise control over the laser’s heat input.
Technical Specifications
| Laser Brand | Hispeed laser machine with JPT laser source |
| Laser type | MOPA Laser |
| Laser Power Options | 20W/30W/60W/100W/120W |
| Marking Area | ≤300*300mm |
| Pulse Width | 30-100 ns |
| Frequency | 200 KHz |
| Minimum Line Width | ≥0.01mm |
| Cooling Method | Air Cooling |
| Life of Laser Module | 70,000~100,000 hours |
Application Examples
MOPA laser color settings on stainless steel
Black marking on anodized aluminum
White marking on black plastic
Black marking on white plastic
Marking barcode and data matric on PCB board
Standard Accessories
- JPT Brand Laser Source,20W-120W power options
- Hispeed-Galvo Scan Head
- F-theta Lens F160-F254
- JCZ EZCAD Marking Control Card and Software
- Industrial Computer and Screen
- Foot Pedal
