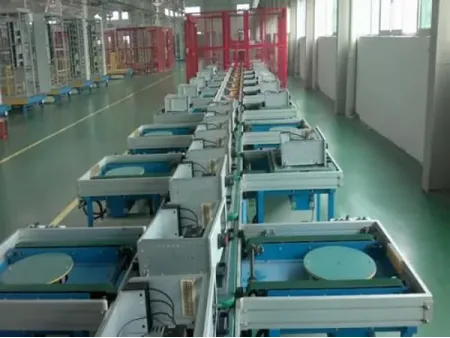

LV Switchgear Drawer Assembly Line
Request a Quote
Designed for continuous drawer assembly, final inspection, and warehouse integration
The low voltage switchgear drawer assembly line adopts a double-speed chain conveyor system for production. Each drawer moves through continuous assembly operations from enclosure installation to final completion.
Workstations are divided according to the standard process of each operation to achieve balanced production rhythm across the line. After final inspection, the finished drawers can be integrated with an automated warehouse system, with barcode scanning used for storage and retrieval management.
Specifications
| Model | |
| Number of Workstations | 20 sets |
| Number of Work Pallets | 30 pieces |
| Conveyor Type | Free flow conveyor (two layer 2.5 times) |
| Work Pallet Return System | Automatic Return (up/down recycle) |
| Testing Area (L×W) | 4000×4000mm |
| Line Footprint (L×W) | 20000×4000mm |
