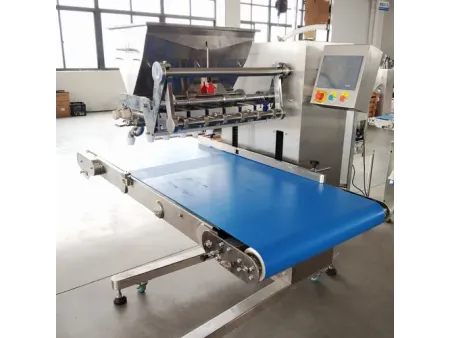

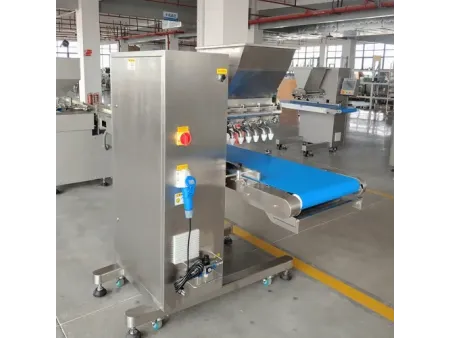

Multi-Piston Depositor HS400A/HS600A
Cream and Mousse Products
Equipped with a 4-nozzle precision filling system to ensure uniform texture and consistent depositing.
Cupcake Production
Upgraded 8-nozzle array improves batch production efficiency.
Large-Diameter Outlet Design
Large discharge pipes accommodate high-weight depositing requirements and process high-viscosity or large-particle materials smoothly.
Flexible Nozzle Configuration
Dual-nozzle installation is supported for specialized process requirements.
Multi-Stage Filling Capability
Programmable multi-cycle depositing is suitable for center-filled and layered cake production.
Decorating Nozzle Option
Cream icing and decorating on the top of cupcake.
- Suitable for multifunctional applications such as quantitative depositing, surface decoration, surface spreading, and center filling
- Suitable for semi-fluid, liquid, and particulate mixtures, including cream, mousse, batter, jam, fruit puree, salad, sauces, egg tart filling, broth, and pasta sauce
- Maximum compatible tray size: 660 × 440 mm
- Available with 6- or 8-nozzle filling configuration; designed for simplified disassembly and cleaning
- Manufactured from SUS304 stainless steel and sanitary-grade materials
- Maximum stroke rate up to 30 cycles per minute; filling time 2-5 seconds per cycle
- Features servo filling system with high precision, rapid response, and stable operation
- Multiple filling volume options are available to accommodate different weight requirements
Food-grade stainless steel construction with tool-free disassembly for convenient cleaning.
Touchscreen control system with storage capacity for more than 100 recipes.
- Anti-drip system, curved discharge pipe system, straight nozzle discharge system, rotary discharge system (6-inch 3-outlet / 8-inch 2-outlet), decorating system, thermal control system (heating or cooling)
- 6-piston or 8-piston configuration
- Multiple cylinder diameter options:
6-cylinder unit: 230 ml, 390 ml, or 550 ml per cylinder
8-cylinder unit: 120 ml or 270 ml per cylinder
