PET Single End Braided Sleeving

Request a Quote

Website: http://sleeving-product.com/pet-single-end-braided-sleeving-1-7.html

EX601

• Material: Polyester (PET)
• Color: Black (custom colors available)
• Operating Temperature: -50°C to 150°C
• Flame Retardancy:
  1. Finished product: Complies with FMVSS 302 (burn rate < 100 mm/min)
  2. Raw material: Flame retardant grade up to UL94 V-0
• Cutting Method: Hot cutting
• Packaging: Paper reel

Now

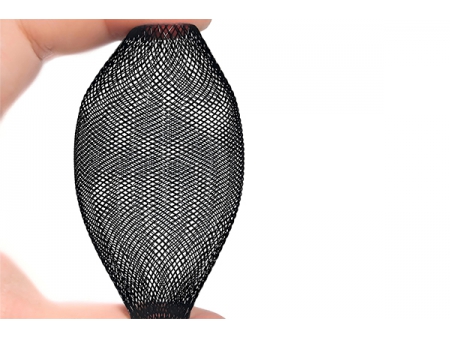

X601 single-end braided sleeving is manufactured from PET monofilament with a filament diameter of approximately 0.25 mm. It provides good expandability and flame-retardant performance, offering reliable protection for wire harnesses in various applications.

Applications

This single-end braided sleeving is suitable for low-voltage automotive wire harnesses, electronic connector harnesses, and other applications requiring reliable wire protection.

Certifications

Parameters

Model	Flat Width (mm)	Diameter (mm)	Application Range (mm)	Packaging Length (m/reel)
EX601250301	3±1	0.25	3~8	1000
EX601250401	4±1	0.25	5~11	1000
EX601250601	6±1	0.25	8~14	1000
EX601250801	8±1	0.25	11~16	1000
EX601251001	10±1	0.25	20~24	500
EX601251201	12±1	0.25	25~30	500
EX601251501	15±1	0.25	30~54	400

Available in custom cut lengths.
Custom sizes available upon request.

For detailed information, please download the product datasheet.
