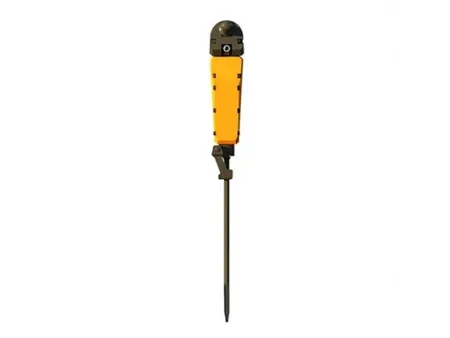

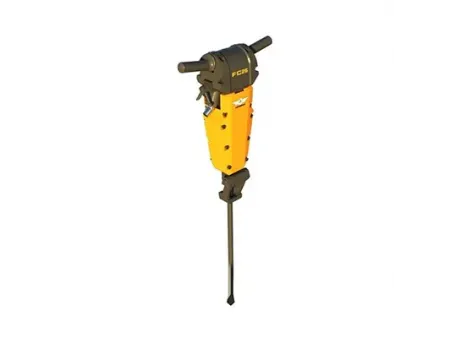

Pneumatic Handheld Drill Splitter
Request a Quote
FG25
Surface Rock Drills- Impact Rate: 1950 BPM
This handheld pneumatic rock drill is engineered for small-to-medium rock excavation in open-pit and underground environments. Compared to conventional models, drilling efficiency is increased by 18% with a 20% reduction in noise levels, emphasizing both high performance and environmental standards. The integrated pneumatic dust collector for screw air compressors has been fully optimized to further enhance energy conservation and environmental protection.
→
Product Parameters
| Overall Length | 630mm |
| Air Consumption @ 6.0 bar | 39L/s |
| Impact Rate | 1950BPM |
| Rotation Speed | 200rpm |
| Penetration Rate | 270mm/min |
| Air Inlet Size | 19mm |
| Vibration Level (ISO 28927-10) | 9m/s² |
| Guaranteed Sound Power Level (2000/14/EC) | 111dB(A) |
| Shank Size | 22×108mm |
Accessories
Bushing
Rifle nut
Piston
Drill rod
Shank adapter
Rotation sleeve
