163A American Type Non Sparking Offset Box End Slogging Wrench Manufacturer

163A American Type Non Sparking Offset Box End Slogging Wrench

Request a Quote

View All: http://bestsafetytools.com/product-1-2-23-box-end-slogging-wrench-en/134171/index.html

As a commonly used tool in America, the 163A slogging wrench has a socket on one end and block on the other. It conforms to the Q/ZBF-163A and is made with either beryllium copper or copper aluminum that has been subjected to a process known as drop forging. Via that process, the wrench achieves high tensile strength, stable mechanical properties, and long service life.

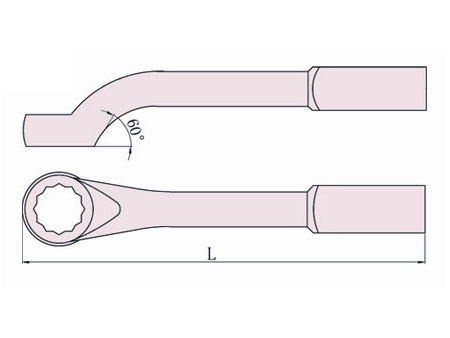

Spark-reduced feature of copper alloy makes the wrench compatible with flammable or explosive atmosphere. Most often struck by a hammer, the spanner creates a motion that moves the hex-head bolts or nuts to release or tighten. The socket is displaced to a large angle to the handle, thus making the handle turn easier without interfering with adjacent fasteners.

Model	S mm	L mm	Be-Cu g	Al-Cu g
163A-24	24	240	950	860
163A-27	27	270	1150	1035
163A-30	30	280	1480	1340
163A-32	32	290	1690	1530
163A-36	36	300	1900	1720
163A-41	41	320	2110	1910
163A-46	46	340	2750	2485
163A-50	50	350	3170	2870
163A-55	55	360	4125	3730
163A-60	60	375	4335	3920
163A-65	65	390	4440	4010
163A-70	70	400	5400	4875
163A-75	75	420	5810	5255
163A-80	80	440	7295	6600
163A-90	90	480	9740	8800
163A-100	100	515	11300	10200
163A-110	110	550	13400	12100
163A-120	120	585	15500	14000
163A-130	130	620	17700	16000

In addition to the specifications listed above, the product also can be manufactured according to customer specific requirements or technical drawings he or she provides.
