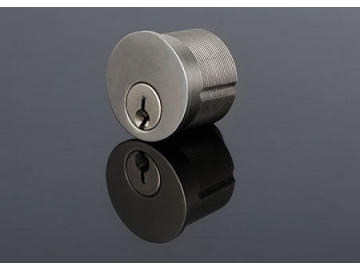

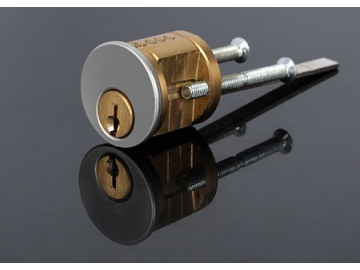

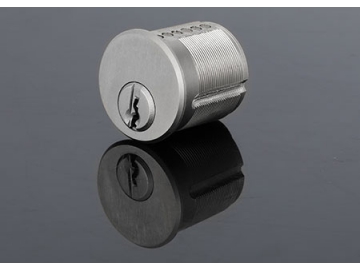

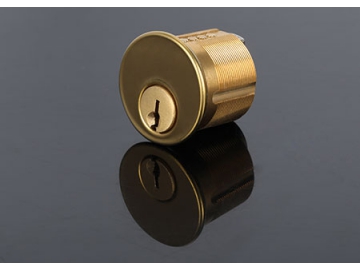

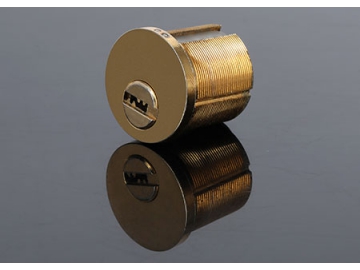

High Security Cylinders, American National Standard
Request a Quote
This series lock cylinder conforms to American ANSI/BHMA standards, featuring robust lock components like face cover and connecting bar which can be customized. Our American standard lock cylinders are high security cylinders with optional functions of high resistance to drilling, picking and bumping.
- Standard: ANSI/BHMA A156.5-2016
- Length: 15/16" (23.8mm), 1 1/8" (28.6mm)
- Increment (distance between pins): 0.015" (0.381mm)
- Pin number: 13 pins
- Pin diameter: 2.85mm
- Pin hole: 5/6 holes
- Screw thread: M29*0.8
- Keyway: American standard keyway (customizable)
- Functions: Protecting against drilling, picking and bumping
- Accessories: face cover, connecting bar (customizable), 2pcs mounting screw (mounting screw M5*30)
