166 Non Sparking Hex Key

Request a Quote

View All: http://bestsafetytools.com/product-1-2-25-non-sparking-hex-key-en/134173/index.html

The 166 non-sparking hex key wrench is typically L-shaped. It usually comes with six-sided cross-section and is specifically intended for driving screws that have a hexagonal socket. The specification of Allen key is defined as the distance between the parallel sides of hexagon. Unit for counting the number of Allen keys is set. One Allen key set is a combination of 8 or 10 Allen keys. Other combination styles are available as well, depending on customer specific requirements.

This Allen wrench, or hex key wrench is constructed from copper alloy that has been subjected to drop forging process. It is a useful tool in various hazardous areas that contain fire or explosion hazards. Durable and long lasting, the highly strong wrench shows stable mechanical performance.

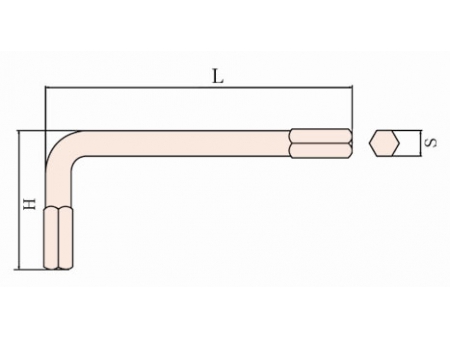

Model	S mm	L mm	H mm	Be-Cu g	Al-Cu g
166-1.5	1.5	59	25	8	6
166-2	2	59	25	8	6
166-2.5	2.5	59	25	8	6
166-3	3	59	25	8	7
166-4	4	65	30	10	8
166-5	5	79	32	16	12
166-6	6	85	37	25	20
166-7	7	88	43	34	30
166-8	8	92	44	50	45
166-9	9	97	44	61	55
166-10	10	110	45	82	70
166-11	11	119	48	100	90
166-12	12	130	52	145	130
166-13	13	140	54	180	160
166-14	14	150	58	211	191
166-15	15	156	60	260	230
166-16	16	162	63	300	270
166-17	17	168	65	370	335
166-18	18	173	69	450	402
166-19	19	177	72	490	445
166-21	21	184	74	652	595
166-22	22	186	77	675	615
166-24	24	192	82	825	755
166-25	25	200	84	925	840
166-26	26	206	90	1025	940
166-27	27	213	93	1220	1115
166-28	28	222	95	1350	1235
166-30	30	240	105	1615	1475
166-32	32	266	116	2065	1885
166-36	36	294	128	2905	2650
166-41	41	320	140	4120	3760

In addition to the specifications listed in the above table, the product also can be custom made according to his or her requirements or technical drawings.
