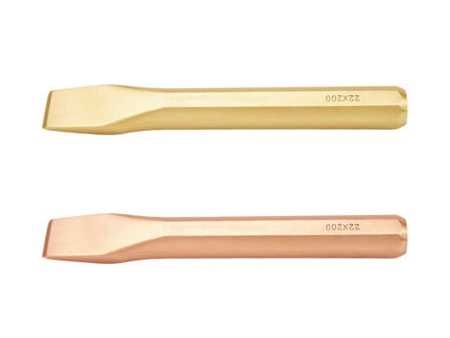

232 Non Sparking Hex Flat Chisel
The 232 non sparking flax chisel consists of a hex shank, leading to a sharp cutting edge on one end and a chamfered-edge pounding face on the other. During operation, a hammer is used to strike the pounding face to exert large amount of force into the workpiece via the cutting edge. Thanks to the unique chamfered-edge design, there are no flash or broken metal pieces shedding off of the pounding surface otherwise unavoidable with a sharp-edge pounding face. Six sided shank, or handle can be safely and easily stored without worrying about rolling away as such is the case with a round shank.
Made of non-sparking copper alloy that has been subjected to drop forging, the flat chisel can be used where combustible or explosive materials are present. It is durable, mechanically strong and stable.
Features- DIN 7254 standard compliant
- Cutting tool with hexagonal shank

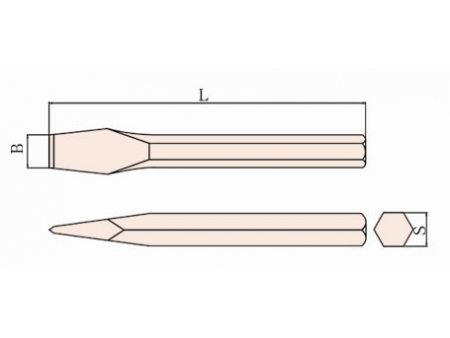

| Model | S mm | L mm | B mm | Be-Cu g | Al-Cu g |
| | 10 | 150 | 12 | 98 | 92 |
| | 14 | 200 | 16 | 251 | 231 |
| | 16 | 160 | 18 | 262 | 242 |
| | 14 | 250 | 16 | 320 | 302 |
| | 17 | 300 | 19 | 772 | 701 |
| | 17 | 350 | 19 | 903 | 821 |
| | 22 | 600 | 24 | 1861 | 1702 |
| | 25 | 300 | 28 | 1204 | 1090 |
| | 30 | 500 | 35 | 2860 | 2620 |
