LSX Series Screw Sand Washer
Request a Quote
This screw sand washer is suitable for washing, classification, and impurity removal operations in industries such as metallurgy, building materials, and hydropower. It is used for washing both fine-grained and coarse-grained materials.
It is particularly suitable for sand and aggregates used in construction, highways, and railways. The sand washer features low power consumption and high washing efficiency.
With a well-sealed structure, fully enclosed transmission system, and adjustable weir plate, it ensures high efficiency, durability, excellent washing and dewatering performance, and stable retention of fine particles.

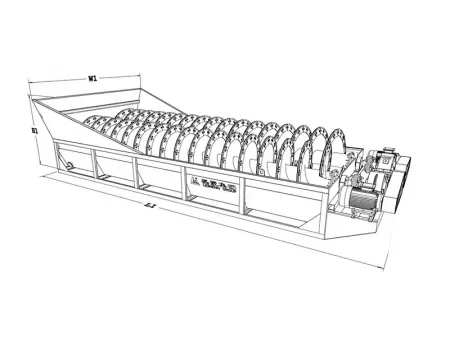

Dimensions
| Model | Length L1 (mm) | Width W1 (mm) | Height H1 (mm) |
| | 7300 | 2200 | 1800 |
| | 8330 | 2400 | 1930 |
| | 8330 | 2400 | 1930 |
| | 8618 | 2700 | 2113 |
| | 8330 | 3660 | 1930 |
| | 8618 | 4000 | 2113 |
Technical Parameters
| Model | Screw diameter (mm) | Tub length (mm) | Feeding size (mm) | Capacity (t/h) | Water consumption (t/h) | Power (kW) |
| 1200 | 6000 | ≤10 | 32-40 | 80-100 | 7.5 | |
| 1200 | 7000 | ≤10 | 32-40 | 80-100 | 75 | |
| 1500 | 7000 | ≤10 | 64-80 | 100-120 | 11 | |
| 1500 | 8000 | ≤10 | 64-80 | 100-120 | 11 | |
| 1200 | 7000 | ≤10 | 128-160 | 180-200 | 11×2 | |
| 1500 | 8000 | ≤10 | 160-192 | 200-220 | 15×2 |

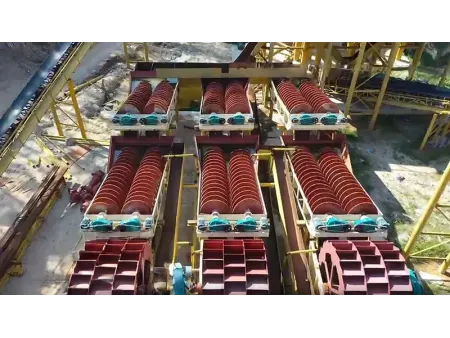

Projects
Sand Making and Washing Project in Jiangmen, GuangdongEPC Aggregate Plant Project in Wenchuan, SichuanAggregate Plant Project of Jintai Mining in Jiangxi
In an aggregate washing plant, what are the main functions of sand washing equipment?
The main functions are to remove mud, silt, and impurities, control clay content, and improve sand cleanliness and suitability for concrete production.
How is water usage controlled in turnkey sand washing solutions?
By integrating sand washing and recovery systems with wastewater recycling, fresh water consumption and discharge are effectively reduced.
