SNT5 MIG/MAG Welding Gun

Request a Quote

View All: http://weldingtoolsmaker.com/2019/snt5.html

Technical Data

Cooling Method: Air-Cooled
Rating: C02: 500A
Rating: Mixed Gas: 400A
Duty Cycle: 60%
Wire Size: 0.9-2.4

Model

Description	Length	Part Number
SNT5 Welding Gun c/w Euro Fitting	10ft	SNT 5-10E
	12ft	SNT 5-12E
	15ft	SNT 5-15E
SNT5 Welding Gun c/w Tweco Fitting	10ft	SNT 5-10T
	12ft	SNT 5-12T
	15ft	SNT 5-15T
SNT5 Welding Gun c/w Lincoln Fitting	10ft	SNT 5-10L
	12ft	SNT 5-12L
	15ft	SNT 5-15L
SNT5 Welding Gun c/w Miller Fitting	10ft	SNT 5-10M
	12ft	SNT 5-12M
	15ft	SNT 5-15M

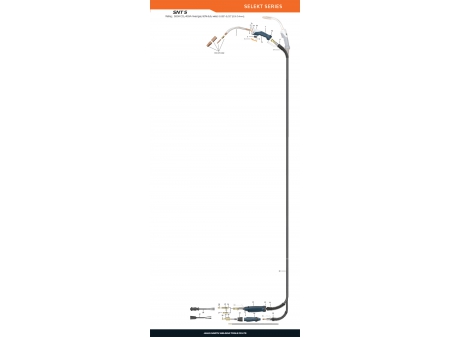

Components

No.	Part Number	Description
1	N65-45J	Jacketed Swan Neck 45°
	N65-60J*	Jacketed Swan Neck 60°
2	TEF5212	Gas Nipple
3	Q508015S	O-Ring 8x1.5
4	Q711	Switch，OMRON
5	NH010304	Trigger PMS1585C
6	Q60512	Trigger Spring
7	NH0103	Handle
	NH010301	Torch Handle DIY R
	NH010302	Torch Handle DIY L
7a	NH010303	Front Cover
7b	NH010205	PCB Holder
7c	NH010207	Adaptor
7d	NH010208	Locking Nut
8	NH010305	Ball Joint
9	142SBJ02	Front Cable Support Spring
10	STL5010	Cable Assembly 10ft
	STL5012	Cable Assembly 12ft
	STL5015	Cable Assembly 15ft
11	KS3201	Back Cable Support Spring
12	NH020103	Locking Nut
13	NH020102	Back Handle L
	NH020101	Back Handle R
14	R174-M	Connector Miller
15	Q512526	O-ring 12.5x2.65
16	R174-N	Nipple For Miller Connection
17	R175-T	Connector Tweco
18	Q511818	O-ring 11.8x1.8
19	8M9500	Back Cable Support Spring
20	NH0202	Back Handle
	NH020201	Back Handle L
	NH020202	Back Handle R
	NH020204	Locking Nut
21	Q210406B	Screw M4x6
22	NH020203	Gun Plug Nut
23	TEU4001	Euro Gun Plug
24	Q504010	O-ring 4x1
25	TEU1011	Nut M11x1,Black
26	MV0004	Miller 4 Pin Plug Assembly Tweco
27	LV0002	2Pin Plug Assembly

*Must indicate part number for clear model classification.
