Sound Absorption Braided Sleeving

Request a Quote

Website: http://sleeving-product.com/sound-absorption-braided-sleeving-5-1.html

BQS903

• Material: Polyester (PET)
• Color: Black
• Operating Temperature: -50°C to 150°C
• Cutting Method: Hot cutting
• Packaging: Paper reel

Now

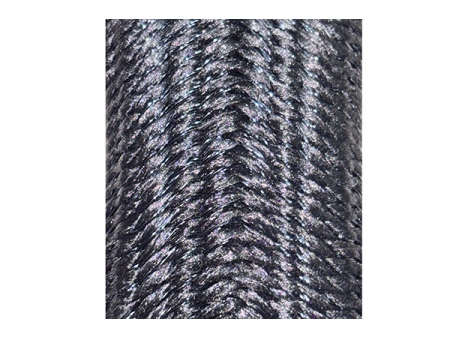

BQS903 series is a sound-absorbing braided sleeving made from a hybrid braid of PET monofilament and multifilament yarns. When installed on wire harnesses and cables, this braided structure effectively reduces noise generated by vehicle vibration, delivering both sound absorption and vibration damping.

Applications

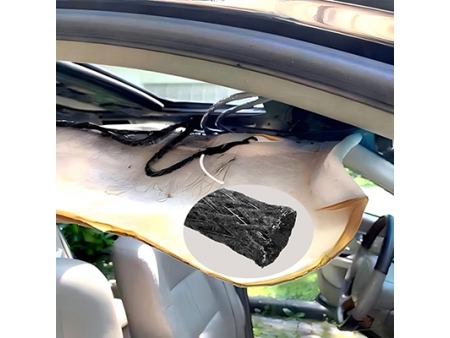

This braided sleeving is widely used for vehicle body wire harnesses, cable assemblies, instrument panels, control modules, and door lock rods where reduction of vibration-induced noise is required.

Certifications

Parameters

Model	Diameter (mm)	Application Range (mm)	Packaging Length (m/reel)
BQS903101001	10	6~12	300
BQS903101601	16	10~18	200
BQS903102201	22	16~24	200

Available in custom cut lengths.
Custom sizes available upon request.

For detailed information, please download the product datasheet.
