Rock Drilling Tools
Request a Quote
- Compatible with rock drilling rigs and jumbos manufactured by: Sandvik, Atlas Copco, Epiroc, Furukawa, Montabert
- Material: Medium-carbon alloy steel
Typical Applications
Mining operations, construction and foundation drilling, road and infrastructure projects.
Underground mining
Piling and foundation works
Technical Specifications
| Model | Length, mm | Thread | Diameter of strike face , mm | Weight, kg |
| | 540 | T45 | 35 | 6.32 |
| | 435 | T38 | 38 | 4 |
| | 525 | T38 | 38 | 5.71 |
| | 540 | T45 | 38 | 6.8 |
| | 435 | R38 | 38 | 3.8 |
| | 525 | T38 | 38 | 5.71 |
| | 360 | T38 | 44.5 | 3.6 |
| | 430 | T38 | 44.5 | 4.45 |
| | 445 | T38 | 44.5 | 4.62 |
| | 380 | T38 | 44.5 | 3.9 |
| | 500 | R32 | 37 | 5 |
| | 500 | T38 | 37 | 5.4 |
| | 500 | R38 | 37 | 5 |
| | 575 | T45 | 37 | 6.3 |
| | 575 | T38 | 37 | 6.1 |
| | 435 | T38 | 38.1 | 4.1 |
| | 435 | R38 | 37.91 | 3.8 |
| | 525 | T38 | 51.94 | 7.2 |
| | 525 | T45 | 51.94 | 7.2 |
| | 525 | T51 | 51.94 | 7.2 |
| | 620 | T38 | 44.75 | 7.8 |
| | 620 | T45 | 44.75 | 7.9 |
| | 620 | T38 | 44.75 | 8.2 |
| | 540 | T38 | 51.94 | 7.3 |
| | 540 | T45 | 51.94 | 7.3 |
| | 540 | T51 | 51.94 | 7.3 |
| | 770 | T51 | 51.94 | 10.1 |
Customization: Product color customization, logo customization, sample-based or drawing-based manufacturing

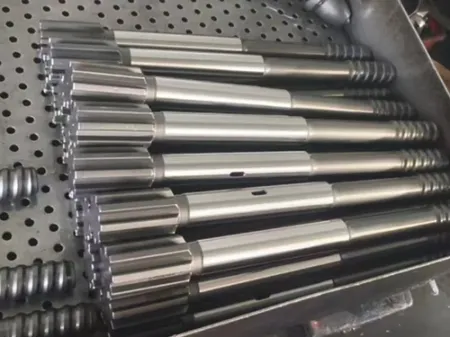

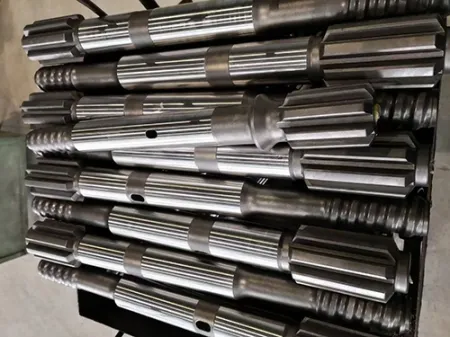

How is a suitable shank adapter selected?
Shank adapter selection is based on the following key parameters: Overall length of the shank adapter, spline type and number, connection dimensions and rock drill model.
Is it possible to supply a suitable shank adapter if some parameters are unavailable?
Yes. Sample-based or drawing-based customization is supported.
