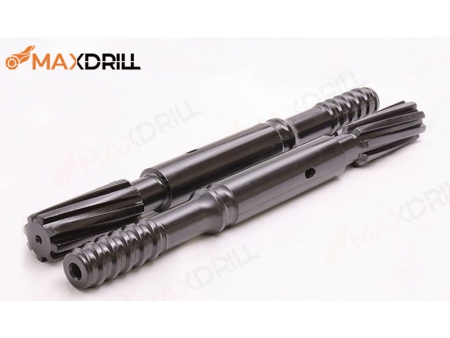

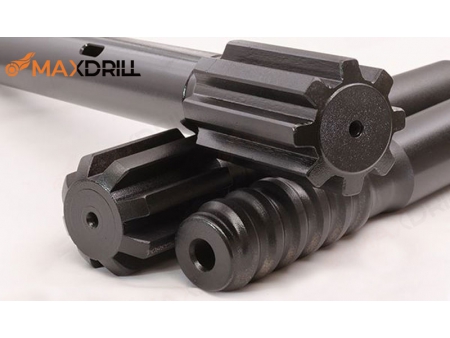

Top Hammer Shank Adapters

Top Hammer Shank Adapters
Top Hammer Shank Adapters
Top Hammer Shank Adapters
Request a Quote

Maxdrill’s top hammer shank adapters are applicable to most brands of rock drills, such as, Atlas Copco, Sandvik, Furukawa, Monatbert, Ingersoll-rand and Krupp. Though every part of drilling tools is undoubtedly crucial, the shank adapters are particularly designed to withstand the extreme percussive force.

Highlights
  • Maxdrill’s shank adapters are made of high-quality alloy steels and processed with carburization technology;
  • Maxdrill adopts NCN machines and advanced techniques to ensure high quality of shank adapters;
  • After being heat treated and straightened by sophisticated equipment, our shank adapters are incredibly straight and wear-resistant.
Shank Adapters Information Downloads
  • SANDVIK

  • ATLAS COPCO

  • FURUKAWA

  • MONTABERT

  • INGERSOLL-RAND

  • KRUPP

Hot Models

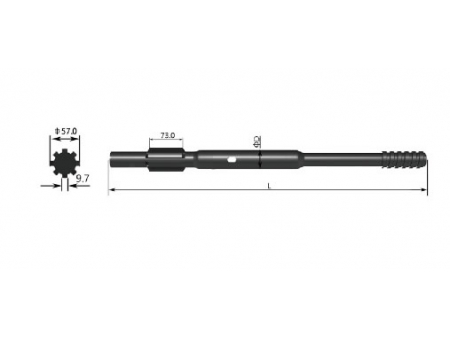

Atlas Copco COP 1440, COP 1550,COP 1638, COP 1838,COP 2238 Thread Dia (mm) Length (mm) Weight (kg) Product NO. Part NO.
R32 38 435 3.6 6108114069 60W435-8-R32D3801
R38 38 435 3.9 6108117074 60W435-8-R38D3801
T38 38 435 3.9 6108122073 60W435-8-T38D3801

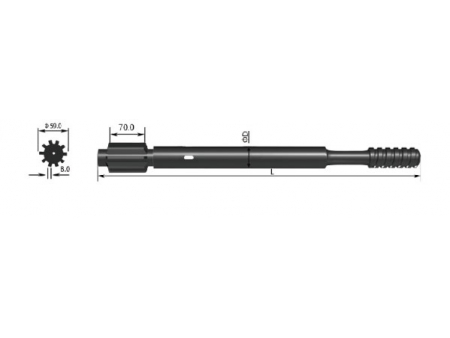

Atlas Copco COP 1440,COP 1550, COP 1638,COP 1838,COP 2238 Thread Dia (mm) Length (mm) Weight (kg) Product NO. Part NO.
R32 38 525 4.2 6108114070 60W525-8-R32D3801
R38 38 525 4.2 6108117071 60W525-8-R38D3801
T38 38 525 4.2 6108122075 60W525-8-T38D3801

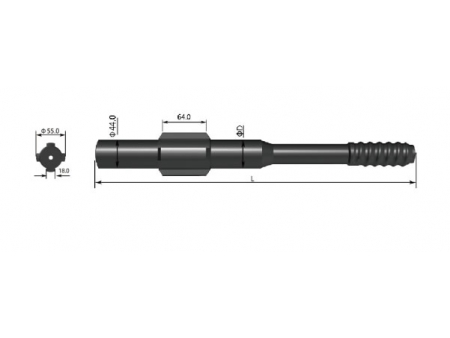

Atlas Copco COP 1440, COP 1550, COP 1838, COP 1838 ME/HE Thread Dia (mm) Length (mm) Weight (kg) Product NO. Part NO.
R32 52 525 5.7 6108114076 60W525-8-R32D5201
TA35 52 525 5.8 6108121077 60W525-8-TA35D5201
T38 52 525 5.9 6108122078 60W525-8-T38D5201
T45 52 525 6.1 6108123079 60W525-8-T45D5201
T51 52 525 6.5 6108124080 60W525-8-T51D5201

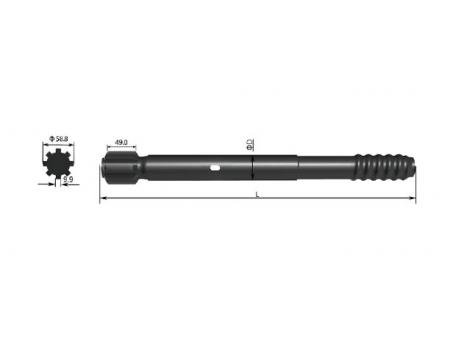

Atlas Copco COP 1840 HE,COP 1850 Thread Dia (mm) Length (mm) Weight (kg) Product NO. Part NO.
T38 52 565 6.6 6108122092 60W565-8-T38D5201
T45 52 565 6.8 6108122093 60W565-8-T45D5201
T51 52 565 7.2 6108122094 60W565-8-T51D5201

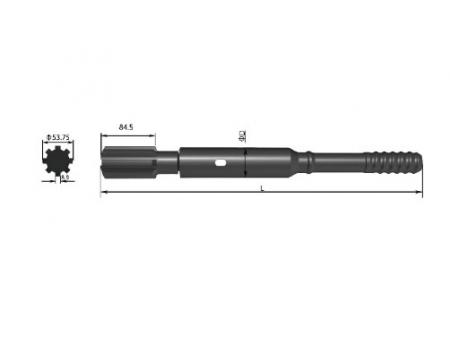

Sandvik HL 500 S, HL 510 S Thread Dia (mm) Length (mm) Weight (kg) Product NO. Part NO.
R32 38 460 3.9 6208114136 60W460-8-R32D3802
R38 38 460 4.2 6208117137 60W460-8-R38D3802
T38 38 460 4.0 6208122138 60W460-8-T38D3802
R38 38 500 4.4 6208117139 60W500-8-R38D3802
T38 38 500 4.3 6208122140 60W500-8-T38D3802

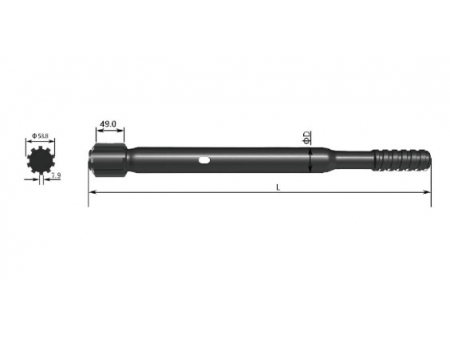

Sandvik HLX 5,HFX 5,RDX 5 Thread Dia (mm) Length (mm) Weight (kg) Product NO. Part NO.
R32 45 500 5.1 6210114145 60W500-10-R32D4502
R38 45 500 5.3 6210117148 60W500-10-R38D4502
T38 45 500 5.3 6210122147 60W500-10-T38D4502
R32 45 575 5.4 6210114150 60W575-10-R32D4502
T38 45 575 5.7 6210122152 60W575-10-T38D4502
T45 45 575 6.2 6210123153 60W575-10-T45D4502

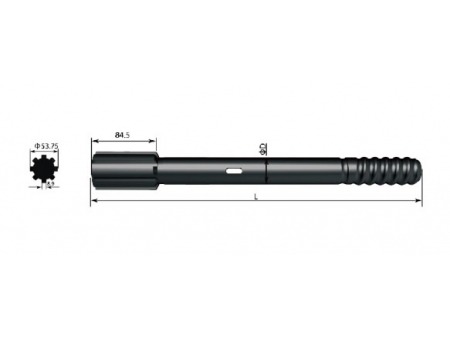

Sandvik RD 520, RD 525 Thread Dia (mm) Length (mm) Weight (kg) Product NO. Part NO.
T38 45 525 5.6 6210122168 60W525-10-T38D4502

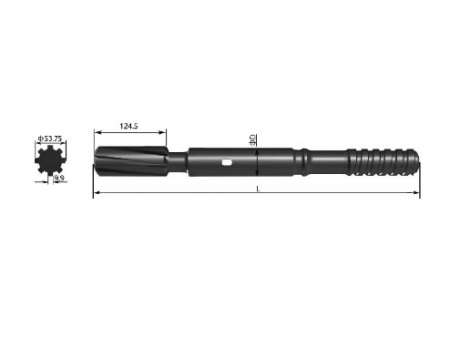

Furukawa PD 200 Thread Dia (mm) Length (mm) Weight (kg) Product NO. Part NO.
R32 44.5 330 3.0 6304014301 60W330-4-R32D4403
T38 44.5 380 3.6 6304022304 60W380-4-T38D4403
T38 44.5 446 4.0 6304220308 60W446-4-T38D4403
Furukawa HD 609 Thread Dia (mm) Length (mm) Weight (kg) Product NO. Part NO.
T38 45 620 6.0 6308122247 60W620-8-T38D4503
T38 45 690 6.4 6308122249 60W690-8-T38D4503
T45 45 620 6.3 6308123248 60W620-8-T45D4503
T45 45 690 6.7 63081233250 60W690-8-T45D4503
