Slurry Seal /Micro-surfacing Paver is the solution to reducing resistance, cracks, rutting and other deteriorations on the road surface. It is applied to enhance the road anti-slippery performance, waterproofness, surface smoothness and driving comfort. Slurry Seal /Micro-surfacing Paver equipment is widely used in construction workmanship in common slurry seal, modified slurry seal and micro-surfaces.

Introduction and Application of Slurry Seal /Micro-surfacing Paver

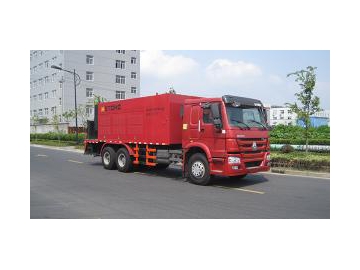

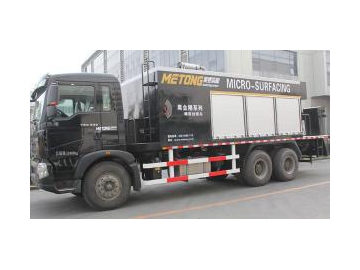

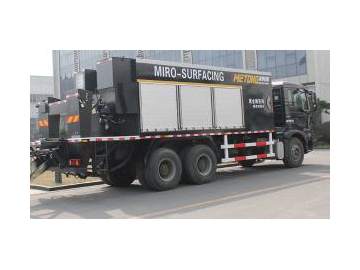

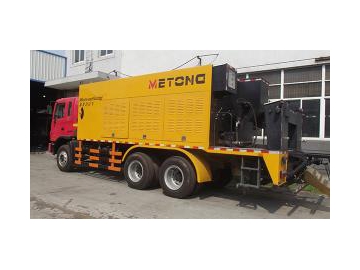

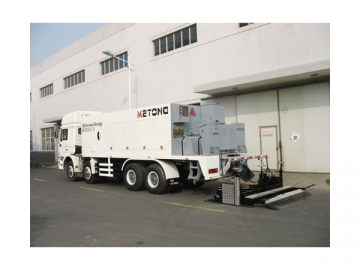

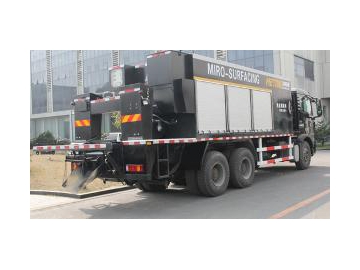

LMT5310TXF Micro-Surfacing Paver

Micro-Surfacing Paver LMT5310TXF is a Metong brand product newly-developed by Metong Corporation in 2009. In comparison to existing similar products locally, Metong LMT5310TXF is more efficient, reliable and has a long life span. The product has high quality in its nature as it was manufactured with advanced technology and made with high durable materials which are imported as well as local materials.

Micro-Surfacing is an innovative solution for sealed roads that are in their early stages of deterioration. The mixture of aggregate, asphalt, water and additive are applied in a smooth thin layer over deteriorated roads. Slurry Seal /Micro-surfacing Paver effectively incorporates engineering design mix, specification requirements and better solution to various field problems.

Micro-Surfacing has the advantages of increasing slippery resistance, high color contrast and off course the smooth surface restoration finishes. Micro-Surfacing can be used from minor feeder roads to high-speed heavy-traffic highways.

Metong's success of this production has come from high qualified and experienced human resource, innovative modern engineering technologies and with advanced computer aided manufacturing facilities.

The main objective of Micro-Surfacing Paver is targeted on efficiency in civil road project constructions, renovations, maintenance, etc. The product itself has a prolong reliability and durability with inbuilt Shan'qi 8x4 chassis and a power supply of 247KW within the system.

Main Technical Parameters
Category Item Unit Parameter
Auxiliary Power System Model / 4BTA3.9
Output Power kw/(r/min) 97KW/2300RPM
Water System Water Tank l 4000
Max. Water Flow l/min 300
Cement System Cement Bin 0.5
Cement Delivery Capacity kg/min 60
Chassis Model / SX1315NR366
Top Speed km/h 99
Minimum Diameter of Turning Circle / 16
Power kw/(r/min) 247/1900
Others Outline Dimension of the Whole Vehicle (L×W×H) mm 11100×2495×3720
Full Load Weight kg 31000
Curb Weight kg 18000

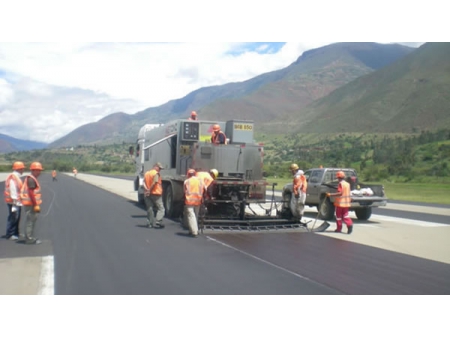

  • Slurry Seal /Micro-surfacing Paver in Peru

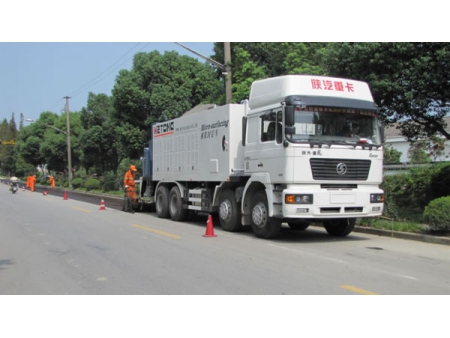

  • Slurry Seal /Micro-surfacing Paver in Shanghai

As a professional micro-surfacing manufacture and supplier in China, we have received ISO9001 certification of quality regulatory system. We provide our customers with road equipment, such as micro-surfacing, Chip Sealing Distributors and Equipment, asphalt distributor and rubber asphalt plant. They are exported to more than forty countries and regions, including Russia, Indonesia, Chile and Kenya. We are in a position to produce high-quality pavement machinery according to customers' various demands. Thank you for visiting our website. If you have any question, please feel free to contact us.
