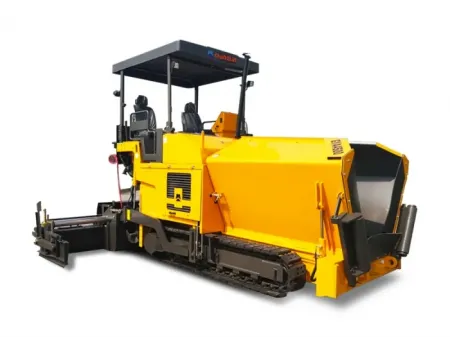

Asphalt Paver GYA4500
Request a Quote
- Hopper Capacity 8t
- Rated Power 93kW
- Max. paving width 4500mm
Video
- Small pavers are widely used for municipal roads, indoor work, small area projects, etc.
- Dongfeng Cummins EFI engine, strong power, high reliability; good low temperature start-up performance.
- Equipped with full hydraulic automatic telescopic screed, paving width 1.8-4.5m stepless adjustable.
- The travel drive system adopts the imported hydraulic piston pump, planetary reducer and plunger motor, which has high reliability; the closed control controls the left and right independent drive modes to ensure stable running of the track drive system, flexible steering and convenient transition.
- External multi-point propane gas heating device, reliable ignition, fast heating speed and uniform heat distribution, and automatic flame-off function for flameout, improving safety of use.
| Model | GYA4500 |
| Length×Width×Height (mm): | 5500×2050×3415 |
| Total weight (kg): | 10500 |
| Engine | Cummins QSB 3.9-C125 |
| Rated output (kw) | 93 |
| Basic paving width (mm) | 2000 |
| Max. paving width (mm) | 4500 |
| Max. paving thickness (mm) | 200 |
| Travelling type | Crawler |
| Travelling speed (km/h) | 0-4.5 |
| Paving speed (m/min) | 0-20 |
| Hoper capacity (t) | 8 |
