Welding Equipment

Your welding application needs are our concern, satisfying your challenges with proven performance

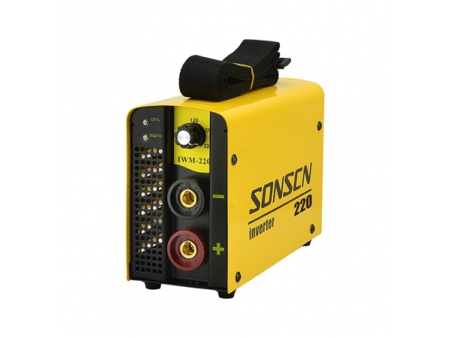

ARC120mini/ARC140mini/ARC160mini
  • Advanced IGBT inverter &MCU digital control: provides stable performance, reliability and high consistency.
  • Portable & lightweight: this welder is easy to operate and carry.
  • Wide range of input voltages: 155-265V (1ph) 50/60HZ.
  • Generator compatible: The MMA welder type mini will be able to operate when powered by a generator.
Model Power Voltage No-load Voltage Efficiency Rated Input Power Output Current Range Duty Cycle Electrode Diameter Weight Dimension
ARC120mini 230V± 10% 50/60Hz (1ph) 75V 85% 5.5kVA 10-120A 60% 1.5-3.2mm (1/8") 2.5kg 22*9*15cm
ARC140mini 230V± 10% 50/60hz (1ph) 75V 85% 6.1 kVA 10-140A 60% 1.5-3.2mm (1/8") 2.8kg 22*9*15cm
ARC160mini 230V±10% 50/60hz (1ph) 75V 85% 6.9 kVA 10-160A 60% 1.5-4.0mm (5/32") 3.2kg 22*9*15cm
Features
  • Advanced IGBT inverter &MCU digital control

    Provides stable performance, reliability and high consistency.

  • Portable & lightweight

    This welder is easy to operate and carry.

  • Wide range of input voltages

    155-265V (1ph) 50/60HZ.

  • Generator compatible

    The MMA welder type mini will be able to operate when powered by a generator.

  • Premium welding performance

    Support welding rods with a maximum diameter of 3.2mm (1/8") or 4.0mm (5/32"). The MMA welder is suitable for welding workpieces with a minimum thickness of 0.8mm. Support E7018, E6010, E6011, E6013 and E308 electrode rods, etc.

  • Hot start

    Provides very easy, quick and reliable arc starts upon contact with the workpiece.

  • Anti-stick

    Avoid electrode sticking in the workpiece during welding, ensures no sticking and smooth welds.

  • Built-in arc force

    Provides smooth and continuous arc, ensures stable welding, and maintains deeper penetration.

  • Safety protection

    The welder is equipped with automatic compensation for overload, overheating protection, voltage fluctuation, and short circuit protection.

  • Lift TIG capabilities

    Integrated lift-TIG functionality enables TIG welding using argon gas. You can choose stick or lift TIG mode as you want.

Applications
  • Welding Equipment for minor construction projects
  • Home decoration industry welding machine
  • Welding Equipment for Farm and Ranch
  • Portable Welder for Repairs and Home DIY
  • Welding Machines for machinery manufacturing and maintenance
Standard Accessories
  • Electrode holder with cable

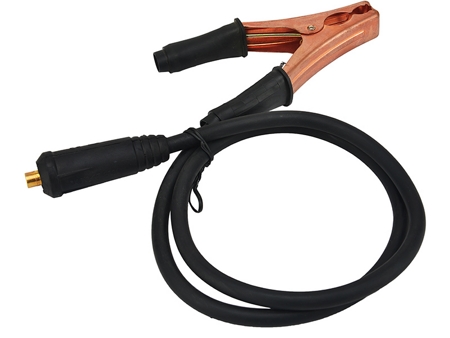

  • Earth clamp with cable
Optional Accessories
  • Plastic tool box
  • Welding mask
  • Wire brush
FAQs
A: Manual metal arc (MMA) welding is one of the most flexible and widely used arc welding processes, with the following advantages:
  • Extremely good flexibility: MMA welding is suitable for indoor and outdoor welding, as well as flat welding or vertical surface welding.
  • Low welding cost.
  • Weldable materials include stainless steel, mild steel, carbon steel and non-ferrous metals, etc
MMA Welder Type MINI can handle welding materials with a diameter of 3.2mm or 4.0mm, and can process workpieces with a minimum thickness of 0.8mm.
