| Model | Power Voltage | No-load Voltage | Efficiency | Rated Input Power | Output Current Range | Duty Cycle | Electrode Diameter | Weight | Dimension |
| | 230V土10% 50/60hz(1ph) | 80V | 85% | 5.5KVA | 10-120A | 60% | 1.5-3.2mm (1/8") | 3.8kg | 28*12*20cm |
| | 230V土10% 50/60hz(1ph) | 80V | 85% | 6.1KVA | 10-140A | 60% | 1.5-3.2mm (1/8") | 4.0kg | 28*12*20cm |
| | 230V土10% 50/60hz(1ph) | 80V | 85% | 6.9KVA | 10-160A | 60% | 1.5-4.0mm (5/32") | 4.2kg | 28*12*20cm |
| | 230V土10% 50/60hz(1ph) | 80V | 85% | 8.2KVA | 10-180A | 60% | 1.5-5.0mm(3/16") | 5kg | 39*17*28cm |
| | 230V土10% 50/60hz(1ph) | 80V | 85% | 9.6KVA | 10-200A | 60% | 1.5-5.0mm(3/16") | 5.5kg | 39*17*28cm |

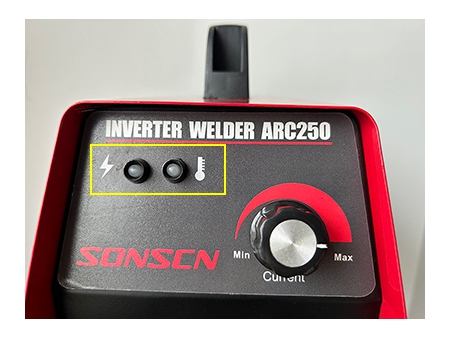

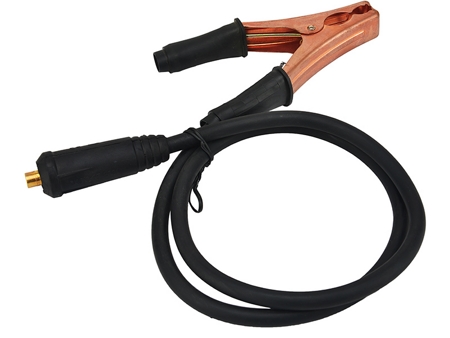

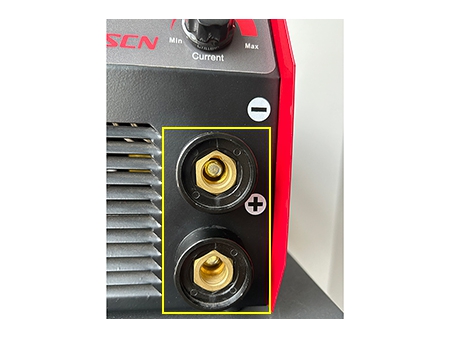

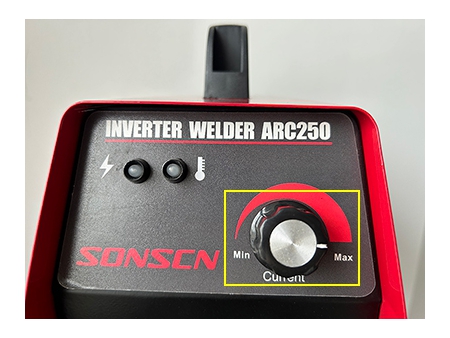

current adjustment knobprotection indicator light (yellow color) “—” electrode holder connectorProvides stable performance, reliability and high consistency.
This welder is easy to operate and carry.
The MMA welder type HD will be able to operate when powered by a generator.
The MMA welder can weld workpieces with a minimum thickness of 0.8mm. Good performance on various types of welding rods, such as E7018, E6010, E6011, E6013, E308, etc.
Provides very easy, quick and reliable arc starts, stable arc, little splash, low noise.
The welder is equipped with automatic compensation for overload, overheating protection, voltage fluctuation, and short circuit protection.
Rutile, alkaline, stainless steel, and cast iron.
We conduct comprehensive quality inspections throughout the production process, including tests for welding performance, circuit stability, safety, durability, aging, high and low temperatures, vibration, welding, and functionality. This ensures every welding machine is manufactured to the highest quality standards.
