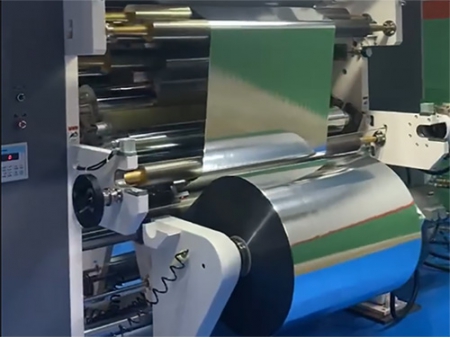

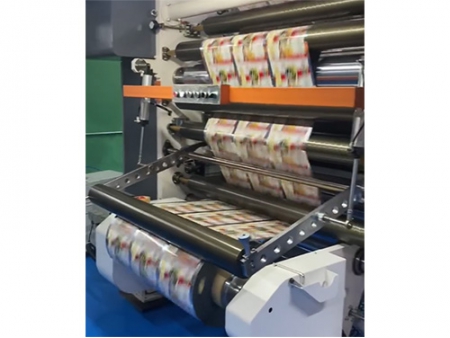

Solventless Lamination Machine

Model A450 solventless laminating machine is suitable for high-speed solventless lamination of different types of plastic films, metalized films, Aluminum foils and papers. It is one of the most popular laminator models in the markets.

Max laminating speed: 450mpm
Max web width: 1050/1300/1500mm
Max unwinding diameter: 800/1000mm
Max rewinding diameter: 800/1000mm
Reel fixing: Shafted or shaftless
Glue applicator: automatic adhesive mixer or single-component adhesive dispensing system
Features
  • Suitable Substrates: Plastics films, metalized films, papers, aluminum foils, etc.
  • Tension Control System: Independent sectional control with dancer roller and load cell combined mode (abb.3D1L), which is best arranged for various types of light and extensible substrates based on the particular features of solventless adhesives.
  • Metering-gap Adjustment: Patented one-switch Quick Positioning Mechanism (QPS), with much less adjusting time and much more constancy.
  • Coating Cylinder Control: Double servo-motor control initiated by Sinomech with better accuracy and more flexibility in coating amount adjustment.
  • Laminating Nip: Patented horizontal Separable Back-up Roller (SBR), with much more stable laminating pressure and applicable for more types of substrates, esp., thin and light extensible materials.
  • Machine Management and Remote Maintenance: open to be integrated into Sinomech Cloud Platform for Solventless Laminators (SCPSL).
Layout of A450 Series Solventless Laminator
Upgraded Models with Functional Units

1. With window lamination function, the laminating machine can be extended to be applicable for paper/film or film/film lamination for window patching packaging.

Optional
  • Standard adhesive mixer SINOMECH SM1-40
  • Single-component adhesive dispensing system SM3-200
  • Auto-refiling System AR1-200
  • Corona treater
Main Components of Solventless Lamination Machine
  • One-switch quick positioning mechanism
  • Impression nip with separable back-up roller
  • Coating unit independently controlled by a servo-motor
  • Shaftless winder
  • Rewinding assisted roller
