Resistance Spot Welder & Argon Arc Welder
Request a Quote
Rubber Processing Machinery
Used for welding metal carrier of vulcanized rubber seal
DNT-16
DNT-30T
JHJ-X
Julong provides resistance spot welders and argon arc welders for welding metal carriers, specifically for welding various types of sheet materials in the production of rubber seal products.
Application
These welding machines are used for welding stainless steel plates, aluminum strips, punched metal tapes, and wires.
Features
- The machine come with adjustable carrier positioning fixtures, making the welding operation simple and efficient.
- The welders are equipped with organic glass protective covers to ensure the safety of operators.
- The welding machines are suitable for welding plates with a maximum width of 60mm.

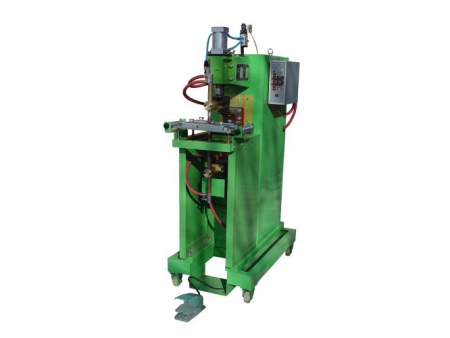

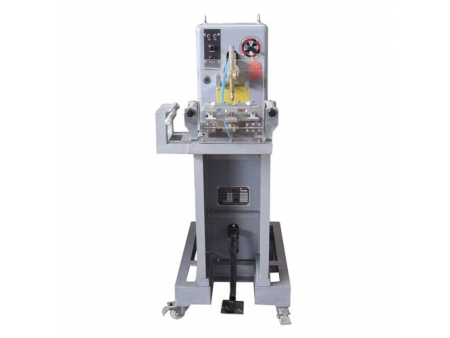

Resistance Spot Welder
| Model | ||
| Steel Strip Positioning Mechanism | The carrier fixture can move parallel internally and externally, and the width is adjustable, suitable for steel strips with a maximum width of 60mm. | |
| Applicable Materials | Roll-cut or punch-cut steel strips | |
| Operation Mode | Foot pedal clamping, with the operator controlling the welding time | Cylinder pressing with automatic lifting after the welding time is up |
| Structure | The upper and lower parts are cylindrical welding rods (φ14), with the lower welding rod and the carrier fixture at the same level. | |
| Protection | An organic glass cover for protection in the operation direction | |
| Alarm | Undervoltage alarm, undercurrent alarm, voltage stabilization function, and alarm digital display (without sound and light alarm). | |
| Power | 16KVA~ 30KVA | |
| Auxiliary Functions | Equipped with manual scissors and electric grinding wheels. | |
| Frequency | 50/60HZ | |
| Dimensions | 650 x 750 x 1500mm (L*W*H) | |

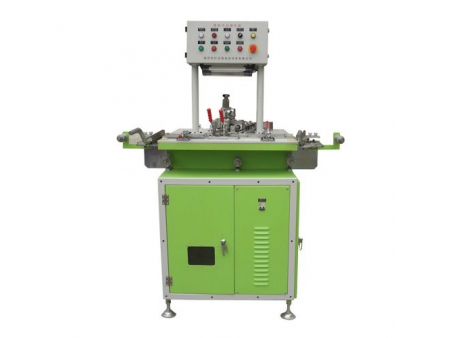

Argon Arc Welder
| Model | |
| Steel Strip Positioning Mechanism | The carrier fixture can move parallel internally and externally, and the width is adjustable, suitable for steel strips with a maximum width of 60mm. |
| Drive | Servo motor |
| Applicable Materials | Steel plate strips, aluminum plate strips |
| Welding Method | AC/DC argon arc welding |
| Protection | An organic glass cover for protection in the operation direction |
| Auxiliary Functions | Automatic moving, automatic arc starting |
| Frequency | 50/60HZ |
| Dimensions | 1000 x 1000 x 1800mm (L*W*H) |
Customization Options
The welding machine can be customized according to customer requirements to meet the welding needs during the rubber vulcanization process.
