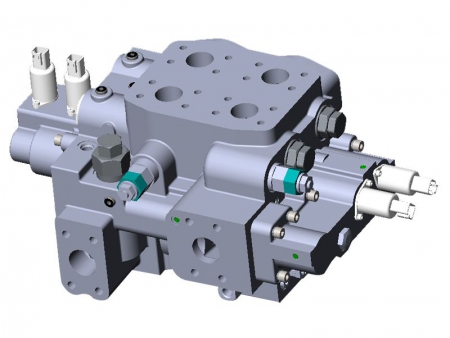

EG40 Electro-Hydraulic Proportional Flow Control Valve
Request a Quote
- Electro-hydraulic proportional flow control valves integrate a dual-section, multi-way valve structure, offering a cohesive solution for complex hydraulic systems
- These flow control valves provide various valve core functions that users can select and combine according to their needs
- The valve cores feature precisely controlled grooves, delivering efficient speed control performance and superior repeatability
- Incorporate load independent flow dividing (LIFD) control, which ensures that the flow rate is unaffected by load pressure, leading to energy savings and comfortable operation.
- Equipped with a return oil regeneration function, the valve saves energy and prevents cavitation, enhancing system efficiency.
- It includes built-in cartridge-style main safety valves, overload valves, and replenishment valves, ensuring good versatility and ease of maintenance.
- Suitable for both constant and variable systems; ideal for various hydraulic applications.
Applications
- Wheel loaders
- Excavators
- Bulldozers
- Telescopic handlers
- Material handling equipment
Parameters
| Rated pressure (MPa) | 31.5 |
| Rated flow (L/min) | 400 (maximum flow: 450L/min) |
| Pressure range of main overflow valve (MPa) | 15～31.5 |
| Pressure range of secondary overflow valve (MPa) | 15～31.5 |
| Hydraulic oil | Mineral oil (HL, HLP) in accordance with DIN 51 524 |
| Fluid temperature range (℃) | －20～100 |
| Viscosity range (mm2/s) | 10～380 |
| Fluid cleanliness | Not lower than GB/T 14039-2002 level 19/16 or NAS 1638 level 10 |
| Weight (kg) | 75 |

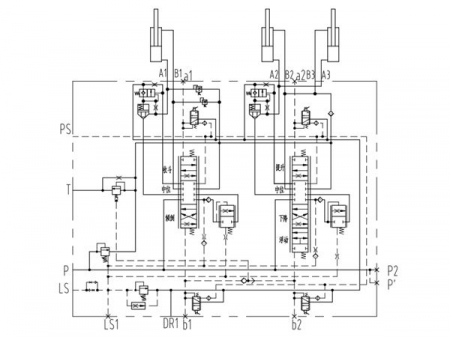

Hydraulic System Schematic Diagram

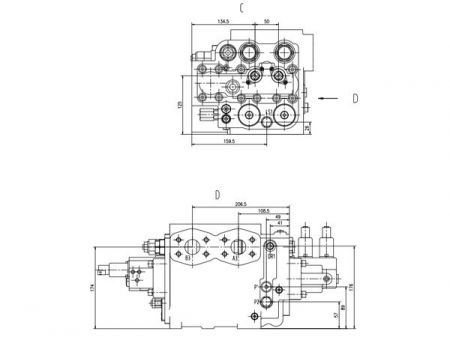

External Connection Dimensions
Professional supplier engaged in the R&D, manufacturing, and sales of various hydraulic components
Annual production capacity of 250,000 sets of hydraulic components
Over 30 series and over 200 varieties and specifications to meet the specific needs of our clients
