DCCT4/5/6 Forklift Electro-Hydraulic Variable Transmission Control Valve
Request a Quote
View All: http://controlvalvemaker.com/4-6-forklift-electro-hydraulic-variable-transmission-control-valve.html
- Compact structure and convenient installation. Each working port is connected by thread.
- Electro-hydraulic control reduces the fatigue strength of operator.
- The normal back-up lamp switch ensures warning and safety.
- Excellent inching unloading performance
Applications
Forklift electro-hydraulic variable transmission control valve is suitable for the variable transmission system of construction machinery, such as forklifts, towing vehicle, etc.
Parameters
| General | |
| Structure | Threaded connection |
| Control | Electro-hydraulic or manual control |
| Installation position | Arbitrarily |
| Hydraulic | |
| Nominal pressure | 25bar |
| Nominal flow rate | 25L/min |
| Setting pressure of constant pressure valve | 11~15bar |
| Operating force of spool | Max.120N |
| Rated voltage UR | DC 12 or 24V |
| Rated current IR | Max. 1.2A (under the rated voltage, 25℃) |
| Fluid temperature range | -20~ 100℃ |
| Viscosity range | 10~380m²/s |
| Permissible degree of contamination | -/19/16(IS04406:1999) |
| Machinery | |
| Weight | DCCT4: 9.8kg DCCT5: 12.3kg DCCT6:19kg |
| Using guidelines | |
| Recommended fixing | At least 3 locations |
| Flatness of the mounting surface | 0.5mm |

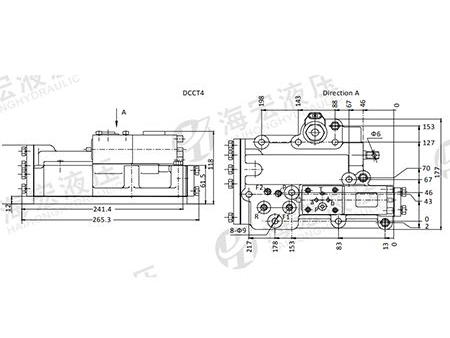

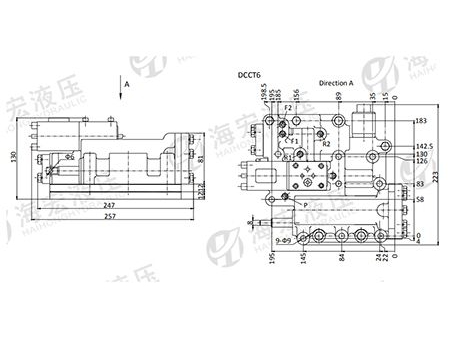

Dimensional Drawing
Professional supplier engaged in the R&D, manufacturing, and sales of various hydraulic components
Annual production capacity of 250,000 sets of hydraulic components
Over 30 series and over 200 varieties and specifications to meet the specific needs of our clients
