Single Wall Heat Shrink Tubing, WMPG
Model: WMPG
Heat shrinkable busbar insulation tubing

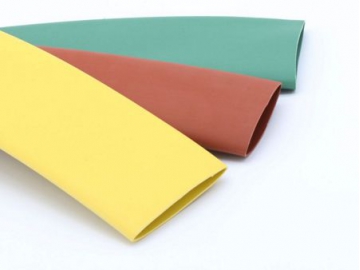

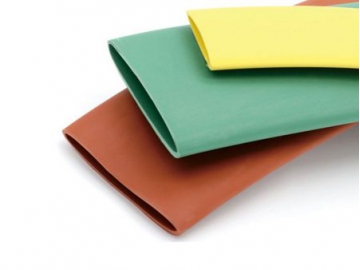

WMPG busbar insulation tubing is single wall heat shrink tubing made from cross-linked polyolefin. It is perfect for copper or aluminum busbars in switchgear and substation, providing insulation and protection against short circuit and electrical leakage. Various color options are available for busbar color distinction.
Features
- Shrink ratio: 2:1
- Made from cross-linked polyolefin
- Insulation and protection of busbars in switchgear and substation
- RoHS compliant
- Shrink temperature: start at 70℃, and fully recovered at 125℃

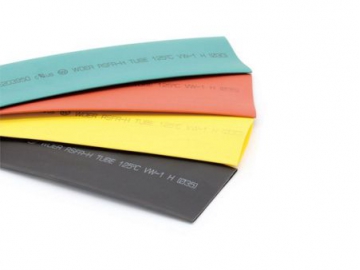

- Color: yellow, red, green, blue, black
- Busbar insulation
- Protection against short circuit and electrical leakage caused by small animals
- Reduction of busbar clearance
- Busbar color distinction
| Property | Test Method | Standard Performance |
| Tensile strength (MPa) | GB/T1040 | ≥8 |
| Elongation at break (%) | GB/T1040 | ≥300 |
| Tensile strength after aging (MPa) | GB/T1040, GB/T7141 | ≥6.4 (130℃, 168hr) |
| Elongation at break after aging (%) | GB/T1040, GB/T7141 | ≥100 (130℃, 168hr) |
| Hardness (Shore A) | GB 2411 | ≤90 |
| Dielectric strength (kV/mm) | IEC 60243 | ≥25 |
| Volume resistivity (Ω.cm) | IEC 60093 | ≥1×10 |
| Dielectric constant | IEC 60250 | ≤3.0 |
| Longitudinal shrinkage | ASTM-D-2671 | ≤10% |
| Eccentricity | ASTM-D-2671 | ≤30%(10kV); ≤50%(35kV) |
| Water absorption (%) | ISO 62 | ≤0.5 |
| Flammability (Oxygen Index) | ISO 4589 | ≥28 |
1kV WMPG Series Single Wall Heat Shrink Tubing
| Order Code | Busbar Width (Square) (mm) | As Supplied (mm) | After Recovered (mm) | Standard Package (m/roll) | ||
| ID (Min) | Wall Thickness | ID (Max) | Wall Thickness | |||
| 1kV WMPG 30/15 | 30 | 31.5±1.0 | 0.50±0.15 | ≤15 | 0.95±0.15 | 50 |
| 1kV WMPG 35/18 | 35 | 36.5±1.5 | 0.50±0.15 | ≤18 | 1.00±0.15 | 50 |
| 1kV WMPG 40/20 | 40 | 41.5±1.5 | 0.55±0.15 | ≤20 | 1.00±0.15 | 50 |
| 1kV WMPG 45/23 | 45 | 46.5±1.5 | 0.55±0.15 | ≤23 | 1.00±0.15 | 25 |
| 1kV WMPG 50/25 | 50 | 51.0±2.0 | 0.55±0.15 | ≤25 | 1.00±0.15 | 25 |
| 1kV WMPG 60/30 | 60 | 60.0±3.0 | 0.60±0.20 | ≤30 | 1.30±0.20 | 25 |
| 1kV WMPG 65/33× | 60 | 65.0±3.0 | 0.60±0.20 | ≤33 | 1.30±0.20 | 25 |
| 1kV WMPG 70/35 | 70 | 70.0±3.0 | 0.65±0.20 | ≤35 | 1.30±0.20 | 25 |
| 1kV WMPG 75/38× | 75 | 75.0±3.0 | 0.65±0.20 | ≤38 | 1.30±0.20 | 25 |
| 1kV WMPG 80/40 | 80/100 | 80.0±3.0 | 0.65±0.20 | ≤40 | 1.46±0.20 | 25 |
| 1kV WMPG 85/43× | 80/100 | 85.0±3.0 | 0.65±0.20 | ≤43 | 1.46±0.20 | 25 |
| 1kV WMPG 90/45 | 100 | 90.0±4.0 | 0.65±0.20 | ≤45 | 1.46±0.20 | 25 |
| 1kV WMPG 100/50 | 100/120 | 100.0±4.0 | 0.65±0.20 | ≤50 | 1.46±0.20 | 25 |
| 1kV WMPG 120/60 | 150 | 120.0±4.0 | 0.65±0.20 | ≤60 | 1.46±0.20 | 25 |
| 1kV WMPG 150/75 | 180 | 150.0±4.0 | 0.65±0.20 | ≤75 | 1.46±0.20 | 25 |
| 1kV WMPG 180/90 | MAX | 180.0±4.0 | 0.65±0.20 | ≤90 | 1.46±0.20 | 25 |
| 1kV WMPG 210/105× | MAX | 210.0±4.0 | 0.65±0.20 | ≤105 | 1.46±0.20 | 25 |
| 1kV WMPG 230/115× | MAX | 230.0±4.0 | 0.65±0.20 | ≤115 | 1.46±0.20 | 25 |
| 1kV WMPG 250/125× | MAX | 250.0±5.0 | 0.65±0.20 | ≤125 | 1.46±0.20 | 25 |
| 1kV WMPG 300/150× | MAX | 300.0±5.0 | 0.65±0.20 | ≤150 | 1.46±0.20 | 25 |
10kV WMPG Series Single Wall Heat Shrink Tubing
| Order Code | Busbar Width (Square) (mm) | As Supplied (mm) | After Recovered (mm) | Standard Package (m/roll) | ||
| ID (Min) | Wall Thickness | ID (Max) | Wall Thickness | |||
| 10kV WMPG 15/8 | 15/12 | 15.0±0.8 | 1.20±0.30 | ≤8 | 2.10±0.30 | 25 |
| 10kV WMPG 20/10 | 20/15 | 20.0±0.8 | 1.20±0.30 | ≤10 | 2.10±0.30 | 25 |
| 10kV WMPG 25/12 | 25/18 | 25.0±0.8 | 1.20±0.30 | ≤12 | 2.10±0.30 | 25 |
| 10kV WMPG 30/15 | 30/20 | 30.0±0.8 | 1.20±0.30 | ≤15 | 2.10±0.30 | 25 |
| 10kV WMPG 40/20 | 40/30 | 40.0±1.0 | 1.20±0.30 | ≤20 | 2.30±0.30 | 25 |
| 10kV WMPG 50/25 | 50/35 | 50.0±2.0 | 1.20±0.30 | ≤25 | 2.30±0.30 | 25 |
| 10kV WMPG 60/30 | 60/45 | 60.0±3.0 | 1.20±0.30 | ≤30 | 2.30±0.30 | 25 |
| 10kV WMPG 65/33× | 65/45 | 65.0±3.0 | 1.20±0.30 | ≤33 | 2.30±0.30 | 25 |
| 10kV WMPG 70/35 | 70/50 | 70.0±3.0 | 1.20±0.30 | ≤35 | 2.30±0.30 | 25 |
| 10kV WMPG 75/38× | 75/50 | 75.0±3.0 | 1.20±0.30 | ≤38 | 2.30±0.30 | 25 |
| 10kV WMPG 80/40 | 80/55 | 80.0±3.0 | 1.20±0.30 | ≤40 | 2.30±0.30 | 25 |
| 10kV WMPG 85/43× | 80/65 | 85.0±3.0 | 1.20±0.30 | ≤43 | 2.40±0.30 | 25 |
| 10kV WMPG 100/50 | 100/75 | 100.0±4.0 | 1.20±0.30 | ≤50 | 2.40±0.30 | 25 |
| 10kV WMPG 120/60 | 120/85 | 120.0±4.0 | 1.20±0.30 | ≤60 | 2.40±0.30 | 25 |
| 10kV WMPG 150/75 | 150/105 | 150.0±4.0 | 1.20±0.30 | ≤75 | 2.40±0.30 | 25 |
| 10kV WMPG 180/90 | 180/120 | 180.0±5.0 | 1.20±0.30 | ≤90 | 2.40±0.30 | 25 |
| 10kV WMPG 210/105× | 210/140 | 210.0±5.0 | 1.20±0.30 | ≤105 | 2.40±0.30 | 20 |
| 10kV WMPG 230/115 | 230/150 | 230.0±5.0 | 1.20±0.40 | ≤115 | 2.40±0.30 | 20 |
| 10kV WMPG 250/125× | 250/180 | 250.0±5.0 | 1.20±0.40 | ≤125 | 2.40±0.30 | 20 |
| 10kV WMPG 300/150× | 300/210 | 300.0±5.0 | 1.20±0.40 | ≤150 | 2.40±0.30 | 15 |
20kV WMPG Series Single Wall Heat Shrink Tubing
| Order Code | Busbar Width (Square) (mm) | As Supplied (mm) | After Recovered (mm) | Standard Package (m/roll) | ||
| ID (Min) | Wall Thickness | ID (Max) | Wall Thickness | |||
| 20kV WMPG 15/8 | 15/12 | 15.0±0.8 | 1.30±0.30 | ≤8 | 2.50±0.20 | 25 |
| 20kV WMPG 20/10 | 20/15 | 20.0±0.8 | 1.30±0.30 | ≤10 | 2.50±0.20 | 25 |
| 20kV WMPG 25/13 | 25/18 | 25.0±0.8 | 1.30±0.30 | ≤13 | 2.50±0.20 | 25 |
| 20kV WMPG 30/15 | 30/20 | 30.0±0.8 | 1.30±0.30 | ≤15 | 2.50±0.20 | 25 |
| 20kV WMPG 40/20 | 40/30 | 40.0±1.0 | 1.40±0.40 | ≤20 | 2.80±0.30 | 25 |
| 20kV WMPG 50/25 | 50/35 | 50.0±2.0 | 1.40±0.40 | ≤25 | 2.80±0.30 | 25 |
| 20kV WMPG 60/30 | 60/45 | 60.0±3.0 | 1.40±0.40 | ≤30 | 2.80±0.30 | 25 |
| 20kV WMPG 65/33× | 65/45 | 65.0±3.0 | 1.40±0.40 | ≤33 | 2.80±0.30 | 25 |
| 20kV WMPG 70/35 | 70/50 | 70.0±3.0 | 1.40±0.40 | ≤35 | 2.80±0.30 | 25 |
| 10kV WMPG 75/38 | 75/50 | 75.0±3.0 | 1.40±0.40 | ≤38 | 2.80±0.30 | 25 |
| 20kV WMPG 80/40 | 80/55 | 80.0±3.0 | 1.40±0.40 | ≤40 | 2.80±0.30 | 25 |
| 20kV WMPG 85/43× | 80/65 | 85.0±3.0 | 1.40±0.40 | ≤43 | 2.80±0.30 | 25 |
| 20kV WMPG 100/50 | 100/75 | 100.0±4.0 | 1.40±0.40 | ≤50 | 2.80±0.30 | 25 |
| 20kV WMPG 120/60 | 120/85 | 120.0±4.0 | 1.40±0.40 | ≤60 | 2.80±0.30 | 25 |
| 20kV WMPG 150/75 | 150/105 | 150.0±4.0 | 1.40±0.40 | ≤75 | 2.80±0.30 | 25 |
| 20kV WMPG 180/90 | 180/120 | 180.0±5.0 | 1.40±0.40 | ≤90 | 2.80±0.30 | 25 |
| 20kV WMPG 210/105× | 210/140 | 210.0±5.0 | 1.40±0.40 | ≤105 | 2.80±0.30 | 20 |
| 20kV WMPG 230/115× | 230/150 | 230.0±5.0 | 1.40±0.40 | ≤115 | 2.80±0.30 | 20 |
35kV WMPG Series Single Wall Heat Shrink Tubing
| Order Code | Busbar Width (Square) (mm) | As Supplied (mm) | After Recovered (mm) | Standard Package (m/roll) | ||
| ID (Min) | Wall Thickness | ID (Max) | Wall Thickness | |||
| 35kV WMPG 30/15 | 30 | 30.0±1.0 | 1.90±0.50 | ≤15 | 4.00±0.30 | 15 |
| 35kV WMPG 35/18 | 30/40 | 35.0±1.0 | 1.90±0.50 | ≤18 | 4.00±0.30 | 15 |
| 35kV WMPG 40/20 | 40 | 40.0±1.0 | 1.90±0.50 | ≤20 | 4.00±0.30 | 15 |
| 35kV WMPG 50/25 | 50 | 50.0±2.0 | 1.90±0.50 | ≤25 | 4.00±0.30 | 15 |
| 35kV WMPG 60/30 | 60 | 60.0±2.0 | 1.90±0.50 | ≤30 | 4.00±0.30 | 15 |
| 35kV WMPG 65/33× | 60/70 | 65.0±2.0 | 1.90±0.50 | ≤33 | 4.00±0.30 | 15 |
| 35kV WMPG 70/35 | 70 | 70.0±2.0 | 1.90±0.50 | ≤35 | 4.00±0.30 | 15 |
| 35kV WMPG 75/38× | 70/80 | 75.0±2.0 | 1.90±0.50 | ≤38 | 4.00±0.30 | 15 |
| 35kV WMPG 80/40 | 80/100 | 80.0±4.0 | 1.90±0.50 | ≤40 | 4.00±0.30 | 15 |
| 35kV WMPG 100/50 | 100/120 | 100.0±4.0 | 1.90±0.50 | ≤50 | 4.00±0.30 | 15 |
| 35kV WMPG 120/60 | 150 | 120.0±4.0 | 1.90±0.50 | ≤60 | 4.00±0.30 | 15 |
| 35kV WMPG 150/75 | 180 | 150.0±4.0 | 1.90±0.50 | ≤75 | 4.00±0.30 | 15 |
| 35kV WMPG 180/90* | MAX | 180.0±5.0 | 1.90±0.50 | ≤90 | 4.00±0.30 | 15 |
| 35kV WMPG 210/105* | MAX | 210.0±5.0 | 1.90±0.50 | ≤105 | 4.00±0.30 | 15 |
| 35kV WMPG 230/115* | MAX | 230.0±5.0 | 1.90±0.50 | ≤115 | 4.00±0.30 | 15 |
| 35kV WMPG 250/125* | MAX | 250.0±5.0 | 1.90±0.50 | ≤125 | 4.00±0.30 | 15 |
| 35kV WMPG 300/150* | MAX | 300.0±5.0 | 1.90±0.50 | ≤150 | 4.00±0.30 | 15 |
Note: size with * are not standard stock items
