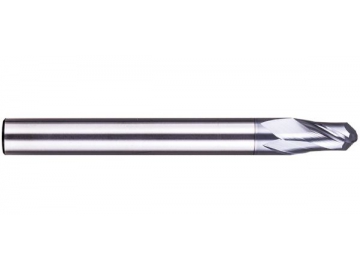

U-B2 General Purpose Solid Carbide End Mill - Ball Nose - 2 Flutes

U-B2  General Purpose Solid Carbide End Mill - Ball Nose - 2 Flutes
U-B2  General Purpose Solid Carbide End Mill - Ball Nose - 2 Flutes
U-B2  General Purpose Solid Carbide End Mill - Ball Nose - 2 Flutes
Request a Quote
Request a quote

Unit: mm

Order CodeCutting Diameter (D)Length of Cut (Lc)Corner Radius (r)Overall Length (L)Shank Diameter (d)
U-B2-01002
10.52504
U-B2-01503
1.50.753504
U-B2-02004
214504
U-B2-02505
2.51.255504
U-B2-03006
31.56504
U-B2-63006
31.56506
U-B2-04008
428504
U-B2-64008
428506
U-B2-05010
52.510506
U-B2-06012
6312506
U-B2-07014
73.514608
U-B2-08014
8414608
U-B2-09016
94.5167510
U-B2-10018
105187510
U-B2-12022
126227512
U-B2-16030
1683010016
U-B2-20038
20103810020

Type A: the cutting diameter is smaller than the shank diameter
Type B: the cutting diameter is equal to the shank diameter
