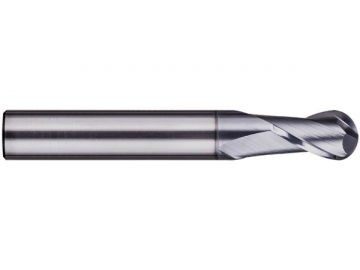

U-BH2 General Purpose Solid Carbide End Mill - Ball Nose - 2 Flutes - Long Shank

U-BH2  General Purpose Solid Carbide End Mill - Ball Nose - 2 Flutes - Long Shank
U-BH2  General Purpose Solid Carbide End Mill - Ball Nose - 2 Flutes - Long Shank
U-BH2  General Purpose Solid Carbide End Mill - Ball Nose - 2 Flutes - Long Shank
Request a Quote
Request a quote

Unit: mm

Order CodeCutting Diameter (D)Length of Cut (Lc)Corner Radius (r)Overall Length (L)Shank Diameter (d)
U-BH2-02004
214754
U-BH2-03006
31.56754
U-BH2-63006
31.56756
U-BH2-04008
428754
U-BH2-64008
428756
U-BH2-05010
52.510756
U-BH2-06012
6312756
U-BH2-08014
8414758
U-BH2-08014H
84141008
U-BH2-10018
1051810010
U-BH2-12022
1262210012
U-BH2-16030
1683015016
U-BH2-20038
20103815020

Type A: the cutting diameter is smaller than the shank diameter
Type B: the cutting diameter is equal to the shank diameter
