Swimming Pool Pump, DXD-310FM
Request a Quote

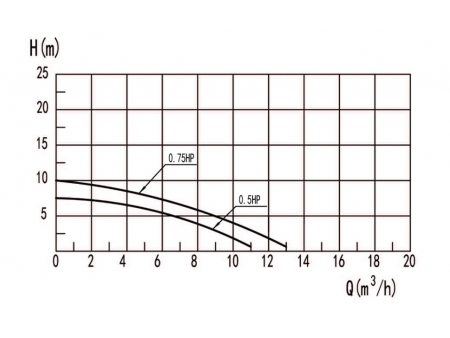

Performance Curve
Working Conditions
- Medium temperature: 5-50℃
- Environmental temperature: ≤50℃
- Humidity: 65% RH
- Maximum working pressure: 0.4MPa
Technical Data
| Model | Voltage | Power | Rotating speed (r/min) | Maximum lift (m) | Maximum flow (m³/h) | Insulation class | Protection grade | Gross weight (kg) | Certification | |
| kW | HP | |||||||||
| DXD-310FM-350 | 230V/50Hz | 0.35 | 0.5 | 2850 | 7 | 11 | F | IP X5 | 8.0 | IEC SAA CE TÜV |
| DXD-310FM-550 | 230V/50Hz | 0.55 | 0.75 | 2850 | 10 | 14 | F | IP X5 | 10.0 | IEC SAA CE TÜV |
| DXD-310FM-350 | 115V/60Hz | 0.35 | 0.5 | 3450 | 7 | 11 | F | IP X5 | 8.0 | UL |
| DXD-310FM-550 | 115V/60Hz | 0.55 | 0.75 | 3450 | 10 | 14 | F | IP X5 | 10.0 | UL |
Packing: 625mm×265mm×400mm
Optional function: timer & no water protection
