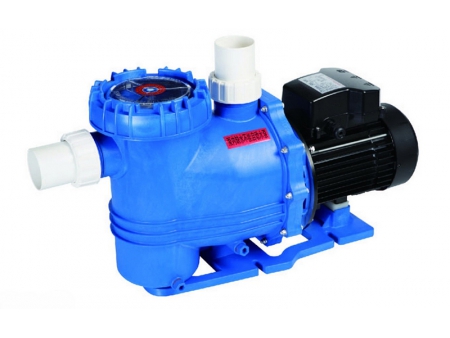

Swimming Pool Pump, DXD-315FM
Request a Quote

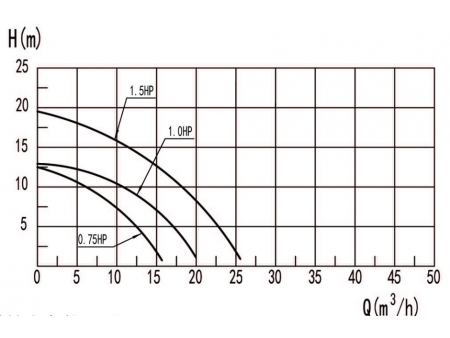

Performance Curve
Working Conditions
- Medium temperature: 5-50℃
- Environmental temperature: ≤50℃
- Humidity: 65% RH
- Maximum working pressure: 0.4MPa
Technical Data
| Model | Voltage | Power | Rotating speed (r/min) | Maximum lift (m) | Maximum flow (m³/h) | Insulation class | Protection grade | Gross weight (kg) | Certification | |
| kW | HP | |||||||||
| DXD-315FM-550 | 230V/50Hz | 0.55 | 0.75 | 2850 | 12 | 16 | F | IP X5 | 10.0 | |
| DXD-315FM-750 | 230V/50Hz | 0.75 | 1.0 | 2850 | 13 | 20 | F | IP X5 | 13.0 | IEC SAA TÜV CE |
| DXD-315FM-1100 | 230V/50Hz | 1.1 | 1.5 | 2850 | 19 | 26 | F | IP X5 | 15.0 | IEC SAA TÜV CE |
| DXD-315FM-750 | 115V/60Hz | 0.75 | 1.0 | 3450 | 13 | 20 | F | IP X5 | 13.0 | UL |
| DXD-315FM-1100 | 115V/60Hz | 1.1 | 1.5 | 3450 | 19 | 26 | F | IP X5 | 15.0 | UL |

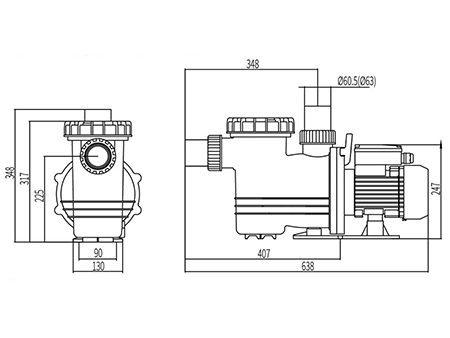

Packing: 625mm×265mm×400mm
Optional function: timer & no water protection
